10-Pair Drop Wire (VX) Modules Terminal Box

  • DW-3011

Product Description





      The terminal block of connection adapts for connecting the distributive wires of external and internal padding. Its construction provides the possibility of conducting the control measurements of the connected chains before both directions. Box provides protection from the environmental effects.

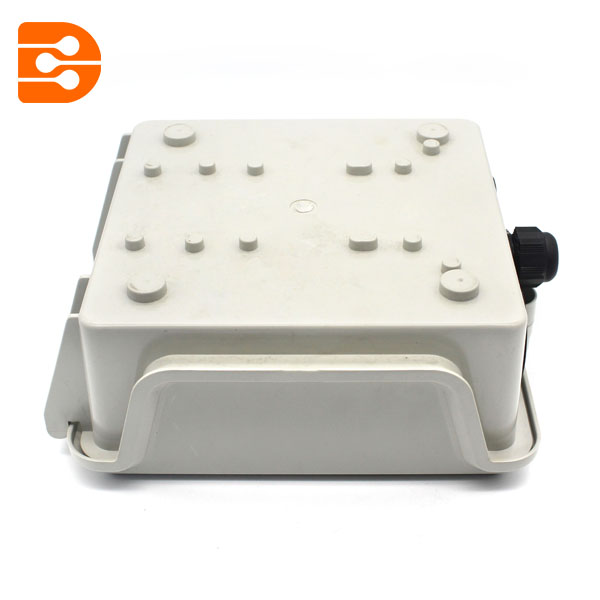

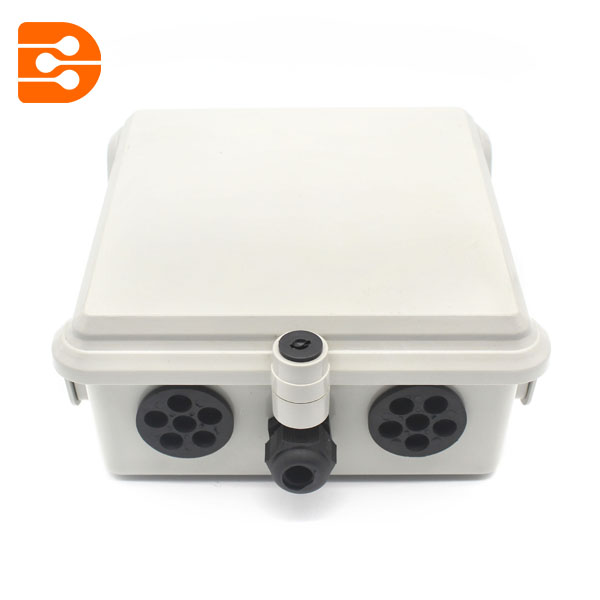

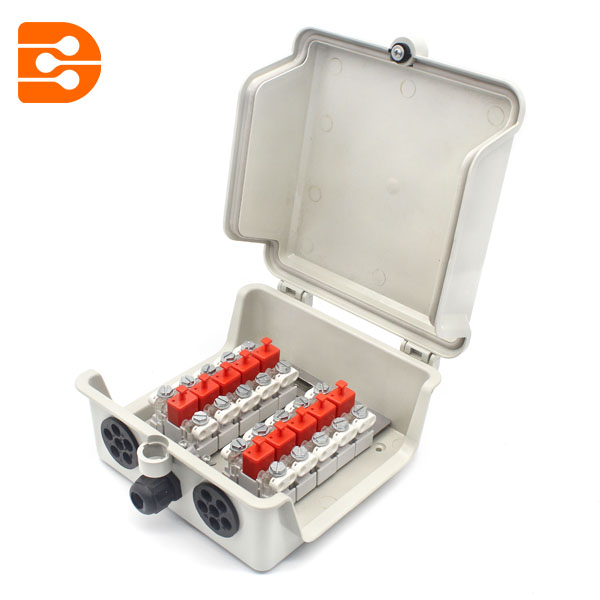

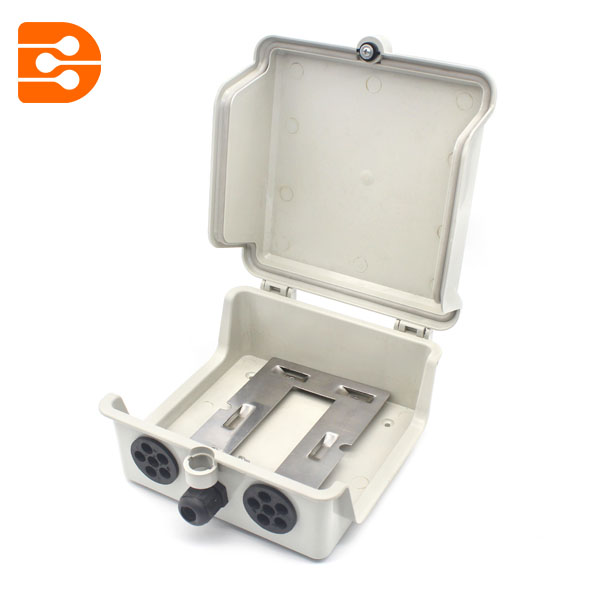

      The terminal block of connection consists of housing and cover of rectangular form, and also 5- polar unit of connection, fixed on the housing. Cover is fixed beyond the axis common with the housing; however, it can be isolated from the housing for guaranteeing the convenience in the work due to the squeezed conditions. The introduction of wires is accomplished through the detachable stuffing boxes, which ensure the possibility of applying the wires of different sizes. Fastening wires is accomplished by the metallic screws, located inside the unit of connection.



Products Specifications
Contact characteristics
Drop wire connector: Gauge range 0.4 to 1.0mm
insulation diameter: 5.0mm max
Pair connector: Gauge range 0.4 to 1.0mm
insulation diameter: 3.0mm max
Current conducting capacity
20A 10A per connector for 10 minutes at least without causing deformation of the module( if 20A up to 30A is required, this is possible using a different GDT)
Insulation resistance
Dry atmesphere >10^12 Ω
Damp atmesphere(ASTMD618) >10^12 Ω
Salt fog(ASTMB117) >10^12 Ω
Immersion in water >10^12 Ω
(15 days in 3% NaCi solution)
Increase in contact resistance
After climatic tests 2.5m
After 50 reinsertions 2.5m
Dielectric strength 3000 Vdc for 1 minutes
Mechanical characteristics
Pair/drop qire housing screw Special passivated direct+lacquered zamac alloy
Drop wire housing body Transparent polycarbonate
Body Flame retardant (UL 94) glass-fiber reinforced polycarbonate
Insertion contacts Tinned phosphor bronze
Ground contacts Cu-Zn-Ni-Ag alloy
Lower sealant Epoxy resin
Upper cable sealant Silicone filled
Pair/drop wire bearing cover Polycarbonate
Continuity contacts Tinned hard brass
Pair/drop wire bearing cover Polycarbonate
Plug-in module body Flame retardant (UL 94) glass-fiber reinforced polycarbonate
Plug-in module sealant Gel
"O"-Ring EPDM
Spring Stainless steel
Cable/drop wire membrance Thermoplastic rubberC











1.STB is a high reliability connection module, designed to with stand all existing climates.

2.Watertight by design, it provide the best service for the following applications:

   Interface boxes UG/Aerial Networks

   Distribution points

   Customer termination devices.

3.Fits on DIN 35 rails

4.Very compact, overall dimensions allow to replace existing won protected solution by a high reliability solution

5.No special tool required, only by standard screw driver.
