Description

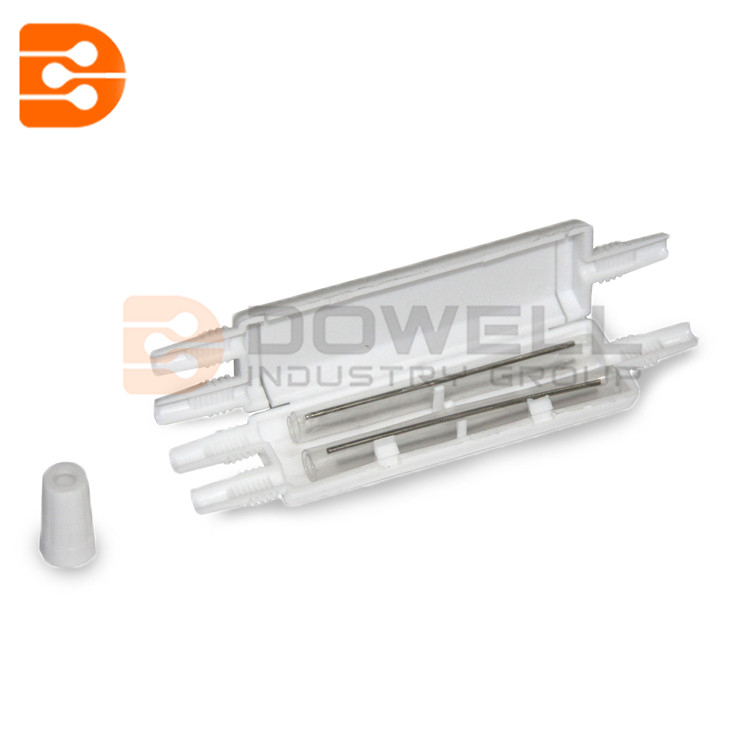

This drop cable splice box is able to hold up to 1-2 subscribers drop cable. It is used as a termination point for the drop cable to connect with pigtail cable access to ONT in FTTH indoor application. It integrates fiber splice connection in one solid protection box.
Features
1.Dust-proof design with IP-45 Protection level.
2.Industrial ABS PBT-V0 flame resistance material.
3.Protect the fiber splice sleeve (45-60mm) from damage.
4.Easy to maintain and extend the capacity.
5.Suitable for the wall mounted installation.
6.Embedded type surface, easy for installation and removal.
7.1-2 ports cable entrance choices for drop cable or pigtail.
Specification
Application | 3.0x2.0mm Drop Cable or Indoor Cable |
Fiber Cladding Diameter | 125um(G652D&G657A) |
Fiber Diameter | 250um&900um |
Fiber Type | Single Mode(SM) & Multi Mode(MM) |
Tensile Strength | > 50N |
Repeat Uses Circles | 5 times |
Insertion Loss | <0.2dB |
Return Loss | > 50dB(UPC), > 60dB(APC) |
Bending Radius(mm) | > 15 |
Operation Temperature | -40~60(°C) |
Storage Temperature | -40~85(°C) |
Configuration
Material | Size | Max Capacity | Mounting Method | Weight | Color | |
ABS | AxBxC(mm) | Model | Fiber Count | Wall Mounting | 7g | White |
12x12x110 | 1202A | 1 Cores | ||||
ABS | AxBxC(mm) | Model | Length | Wall Mounting | 10g | White |
18x11x85 | 1202B | 2 Cores | ||||
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
