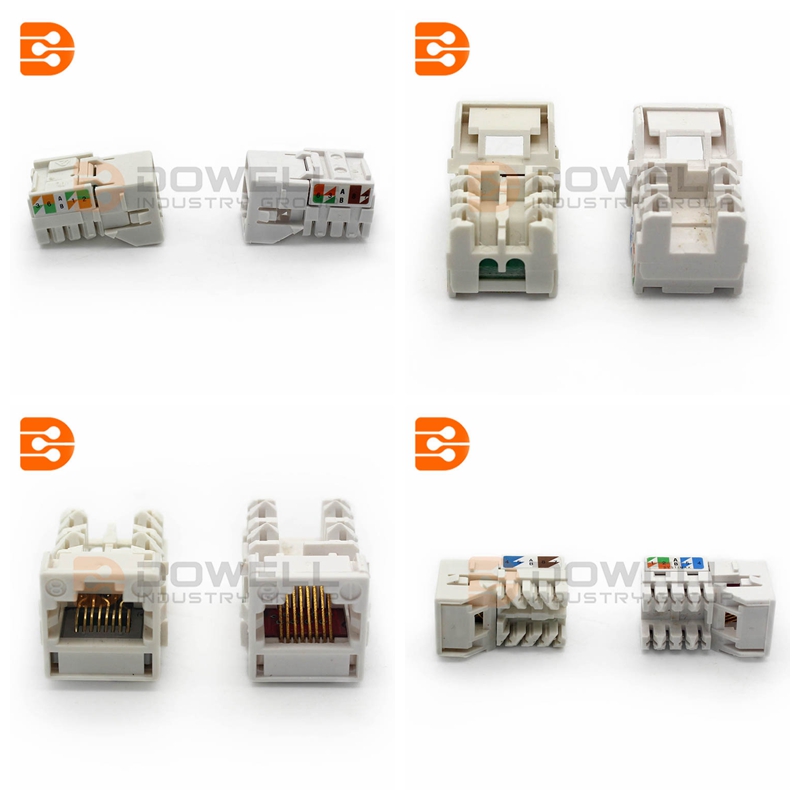

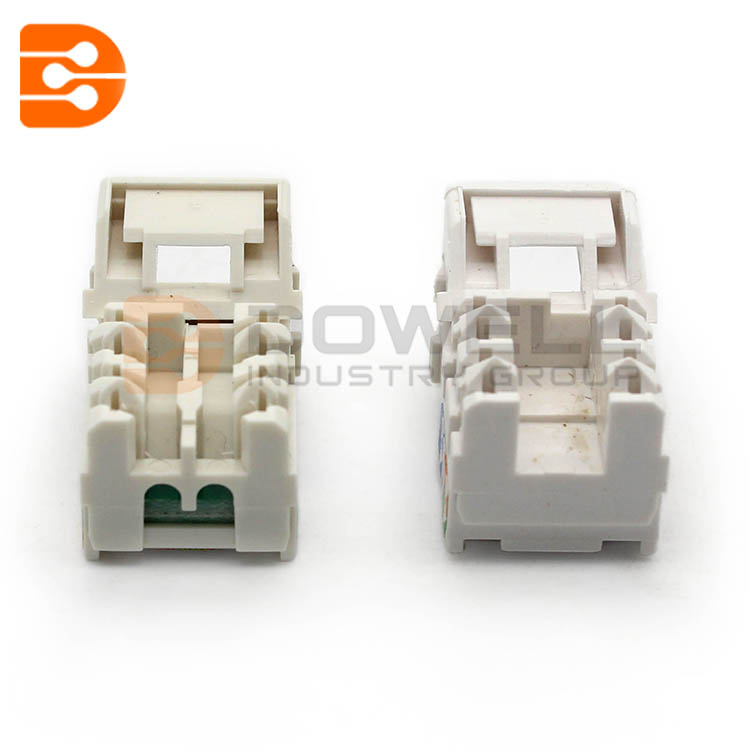

| Product Classification | |
| Product Type | Modular Jack |
| Dimensions | |
| Depth | 30.48 mm | 1.20 in |
| Height | 20.32 mm | 0.80 in |
| Width | 20.32 mm | 0.80 in |
| Electrical Specifications | |
| ANSI/TIA Category | 6A |
| Contact Resistance Variation, maximum | 20 mOhm |
| Contact Resistance, maximum | 100 mOhm |
| Current Rating | 1.5 A @ 20 °C |
| 1.5 A @ 68 °F | |
| Dielectric Withstand Voltage, RMS, conductive surface | 1500 Vac @ 60 Hz |
| Dielectric Withstand Voltage, RMS, contact-to-contact | 1000 Vac @ 60 Hz |
| Insulation Resistance, minimum | 500 MOhm |
| Environmental Specifications | |
| Flammability Rating | UL 94 V-0 |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Safety Standard | cUL | UL |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| General Specifications | |
| Cable Type | U/UTP (unshielded) |
| Color | Almond |
| Package Quantity | 1 |
| Product Type | Outlet |
| Mechanical Specifications | |
| Conductor Gauge, solid | 22 AWG | 24 AWG |
| Conductor Gauge, stranded | 22 AWG | 24 AWG |
| Conductor Type | Solid | Stranded (7 strands) |
| Material Type | Copper alloy | High-impact, flame retardant, thermoplastic |
| Outlet/Module Contact Plating | Precious metals |
| Plug Insertion Life, minimum | 750 times |
| Plug Insertion Life, test plug | IEC 60603-7 compliant plug |
| Plug Retention Force, minimum | 133 N | 30 lbf |
| Rear Termination Contact Plating | Nickel |
| Rear Termination Type | IDC |
| Wiring | T568A | T568B |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
