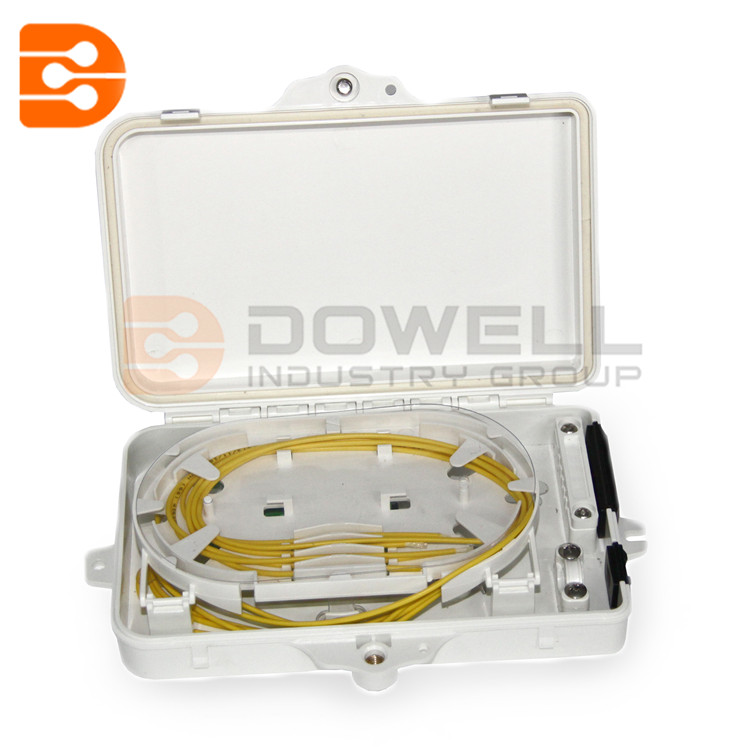

DW-1204 Waterproof FTTH Termination Box 4 Core Wall Mount Fiber Termination Box

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: DOWELL
  • Model Number: DW-1204
  • Certification: CE/SGS
  • Product name: 4 Core Wall Mount Fiber Termination Box
  • Dimensions (H*W*D): 167mm*102mm*31mm
  • Optional Accessories: Adapters, Pigtails
  • Insertion loss: ≤0.2dB
  • Weight: 0.32 KG
  • Temperature: -40℃ -- 60℃

Optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

1.PC+ABS material used ensures the body strong and light..
2.Wet-proof, water-proof, dust-proof, anti-aging
3.Easy installations: Ready for wall mount – installation kits provided
4.Space saving: Double-layer design for easier installation and maintenances
5.Easy installations: Ready for wall mount – installation kits provided.
6.Protection level up to IP55
7.Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
8.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
9.Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adapt or installation, easy maintenance.…

Dimensions and Capability
Dimensions (H*W*D) 167mm*102mm*31mm
Adapter Capacity SC 2; LC 4; PLC 4
Number of Cable Entrance/Exit 1/4
Optional Accessories Adapters, Pigtails
Insertion loss ≤0.2dB
UPC return loss ≥50dB
APC return los ≥60dB
Life of insertion and extraction >1000 times
Weight 0.32 KG
Max diameter of entry cable 9mm
Operation Conditions
Temperature -40℃ -- 60℃
Humidity 93% at 40℃
Air Pressure 62kPa – 101kPa
Shipping Information
Package Contents Distribution box, 1 unit; Keys for lock, 2 keys Wall mount installation accessories, 1 set
Package Dimensions(W*H*D) 190mm*50mm*120mm
Material Carton Box
Weight 0.82 KG

Q: Are you trading company or manufacturer ?

A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
