DW-1210 12 Core Outdoor FTTH Wall/Pole Mounted Fiber Optic Junction/Distribution Box

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: DOWELL
  • Model Number: DW-1210
  • Certification: CE/SGS
  • Material: ABS, PC

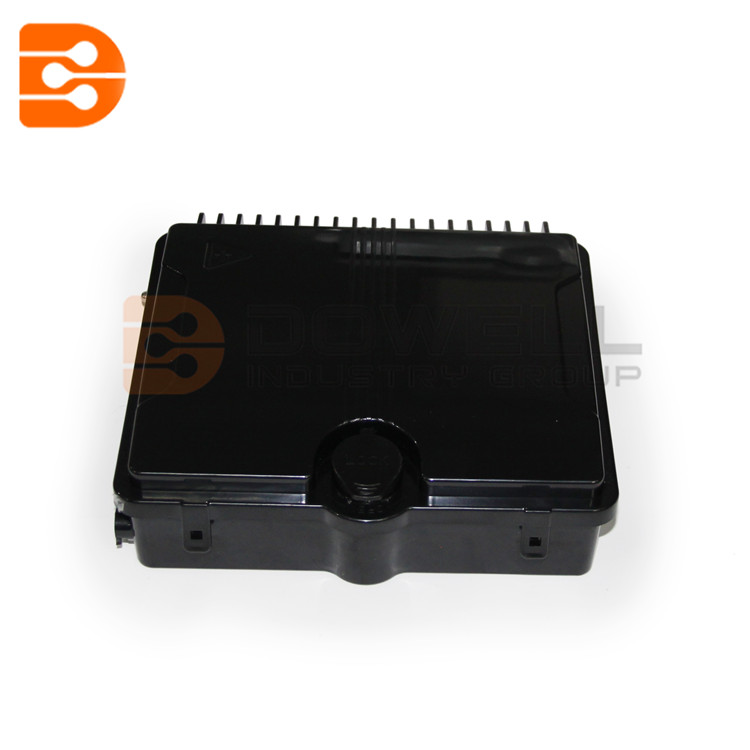

FTTH termination boxes are made of ABS, PC, which guarantee wet, dust, proof and outdoor or indoor usage. Wall-mounted type of installation is done by 3 galvanized screws of 38*4 size. Optical termination boxes contain 2 fixation brackets for cable wire, ground device, 12 splice protection sleeves, 12 nylon ties. Anti-vandal lock provided for security.

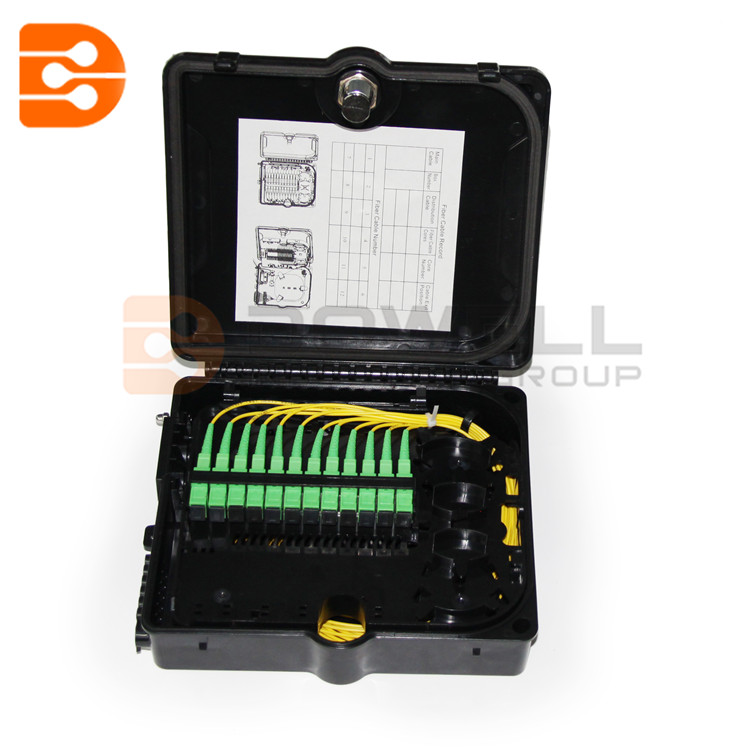

The dimensions of 12 core Fiber Optic Termination Box are 200*235*62, what is wide enough for appropriate fiber bending radius. Splice tray allows installation of splice protection sleeves or PLC splitters. The termination box itself allows installation of up to 12 SC fiber adaptors. Light and pleasing in appearance, box has strength mechanical protection and easy maintenance. Provides an easy users access or data access based on Fiber to the home technology.


Two feeding optical fiber cables can be input in 12 core fiber optic termination box from the bottom. Feeders diameter should not exceed 15 mm. Then, branching drop wire as FTTH cable or patch cords and pigtails cables connect with feeder cable in box, by the SC fiber optical adaptors, splice protection sleeves, or PLC splitter and managing from optical terminating box to the passive optical ONU equipment or active equipment.

Q: Are you trading company or manufacturer ?

A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
