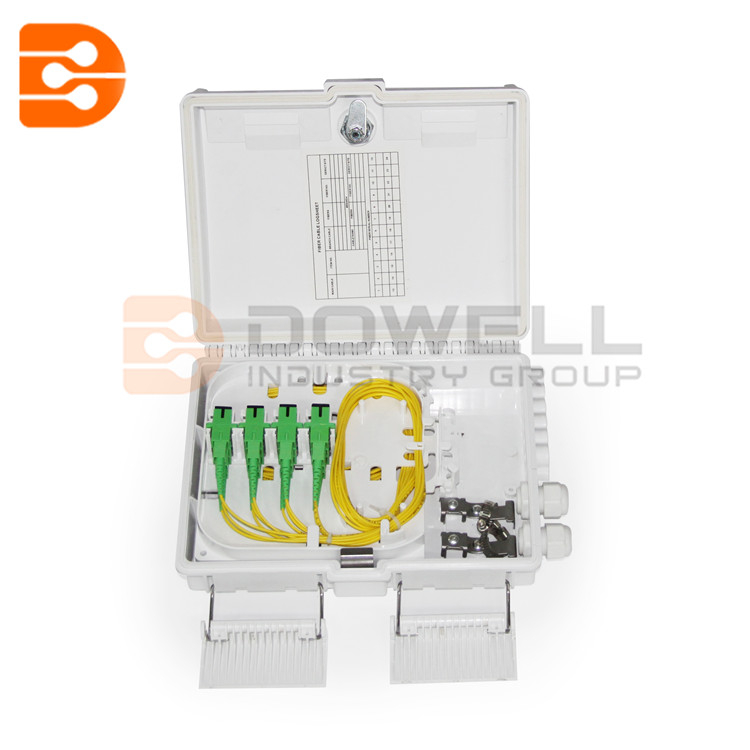

DW-1213 12 Core Fiber Optic Terminal Box FTTH Box Fiber Optic Distribution Box with 12pcs Adaptor and Pigtails

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: DOWELL
  • Model Number: DW-1213
  • Certification: CE/SGS
  • Dimension: 250*190*39mm
  • Max adapter: 12X SC simplex, LC duplex adapter
  • Cable port: 2in 16out
  • Material: PC+ABS

This optic fiber box is applicable PLC coupler to a terminal access links FTTH access system. It is especially for connecting and protection for fiber cable for FTTH.


1.The two-tier structure, the upper wiring layer optical splitter, lower for fiber splicing layer.

2.Optical Splitter module drawer modular design with a high degree of interchangeability and versatility;

3.Up to 12pcs FTTH drop cable

4.2 ports for outdoor cable in

5.12 ports for drop cable or indoor cable out

6.can accommodate 1x4 and 1x8 1x16 PLC splitter (or 2x4 or 2x8)

7.Wall mounting and pole mounting application

8.IP 65 waterproof protection class

9.Indoor or outdoor use

10.Suitable for 12x SC / LC duplex adapter

11.Pre-terminated pigtails,adapters, plc splitter available.


1.Widely used in FTTH (Fiber To the Home) access network

2.Telecommunication Networks

3.CATV Networks

4.Data communications Networks

5.Local Area Networks

6.Suitable for Telekom UniFi






Max capacity

12 CORES; PLC:1X2,1X4,1X8,1X12

Max adapter

12X SC simplex, LC duplex adapter

Max splitter ratio

1x2,1x4,1x8,2x4,2x8 mini splitter

Cable port

2in 16out

Cable diameter

In: 16mm; out:2*3.0mm drop cable or indoor cable




White, black, gray

Environmental requirement

Working temprature : -40℃~+85℃
Relative humidity : ≤85% (+30℃)
Atmospheric pressure : 70Kpa~106Kpa

Main technical

Insertion loss : ≤0.2db
UPC return loss : ≥50db
APC return loss : ≥60db
Life of insertion and extraction : >1000 times

Q: Are you trading company or manufacturer ?

A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
