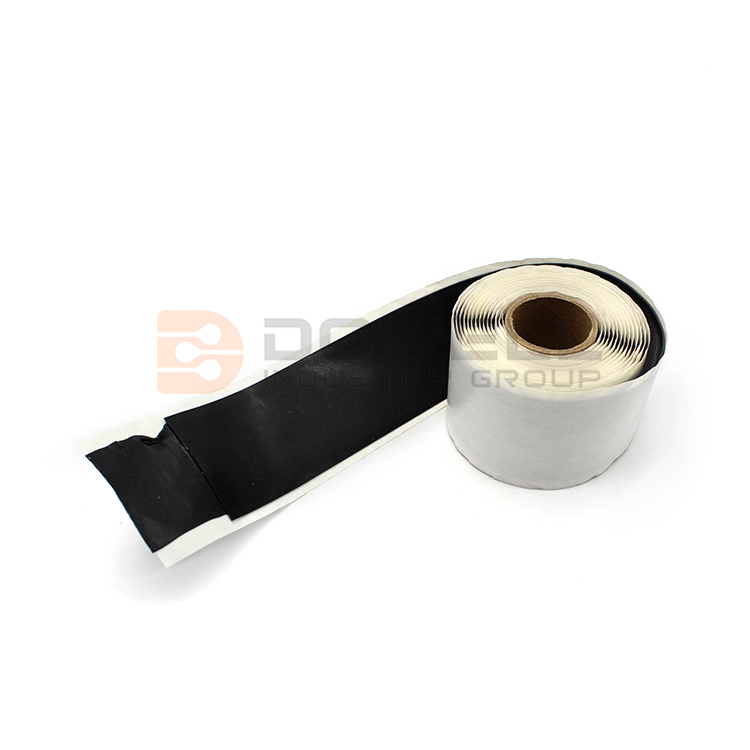

2228 is a conformable self–fusing rubber electrical insulating and sealing tape. 2228 consists of an ethylene propylene rubber (EPR) backing coated with an aggressive, temperature–stable mastic adhesive. The tape is made 65 mils (1,65 mm) thick for quick application build–up. It is designed for electrical insulating and moisture sealing applications.
2228 can be used on copper or aluminum conductors rated at 90°C, with an emergency overload rating of 130°C. It offers excellent resistance to moisture and ultraviolet exposure and is intended for both indoor and weather exposed outdoor applications.
| Typical Data | |
| Temperature Rating: | 194°F (90°C) |
| Color | Black |
| Thickness | 65 mils (1,65 mm) |
| Adhesion | Steel 15.0lb/in (26,2N/10mm) PE 10.0lb/in (17,5N/10mm) |
| Fusion | Type I Pass |
| Tensile Strength | 150psi (1,03N/mm^2) |
| Elongation | 1000% |
| Dielectric Breakdown | Dry 500v/mil (19,7kv/mm) Wet 500v/mil (19,7kv/mm) |
| Dielectric Constant | 3.5 |
| Dissipation Factor | 1.0% |
| Water Absorption | 0.15% |
| Water Vapor Transmission Rate | 0.1g/100in^2/24hr |
| Ozone Resistance | Pass |
| Heat Resistance | Pass, 130°C |
| UV Resistance | Pass |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
