| Specifications | |
| Max insulation diameter (mm) | 1.65 |
| Cable style and wire diameter | 0.65-0.32mm(22-28AWG) |
| Environment characteristic | |
| Environment chaStorage Temperature Range | -40℃~+120℃ |
| Operating Temperature Range | -30℃~+80℃ |
| Relative Humidity | <90%(at20℃) |
| Atemospheric Pressure | 70KPa~106KPa |
| Mechanical Performance | |
| Plastic Housing | PC (UL 94v-0) |
| Contacts | Tinned Phosphor Bronze |
| Cutting blades leftover cable | Stainless steel |
| Wire Insertion Force | 45N Typical |
| Wire Pull out Force | 40N Typical |
| Breaking strength or slip conductor | > 75% Wire breaking strength |
| Use Times | >100 |
| Electrical Performance | |
| Insulation Resistance | R≥10000M Ohm |
| Contact Resistance | The vary of the contact resistance ≤1m Ohm |
| Dielectric Strength | 2000V DC 60s can't spark over and haven't fly arc |
| Constant Current | 5KA 8/20u Sec |
| Surge Current | 10KA 8/20u Sec |

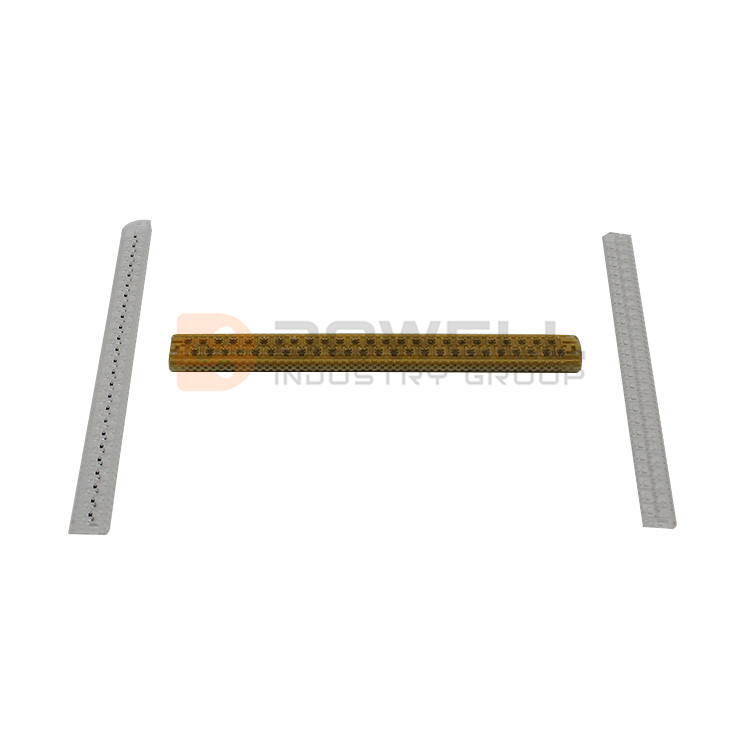

25-pair Communication Cable Connecting Module is used to connect all plastic communication cables (diameter 0.32 - 0.65mm) through direct connection, bridge connection and multiple connection. It is widely used in communication circuit.
The contact is designed into tuning fork type and sheet joint so that connection will not be hampered.
With clear cover module, for easy pairs identification and troubleshooting
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
