IDC Element:
| Contact Principle Acc. to DIN IEC 352 | Insulation displacement connection for the accomodation of two lines per IDC terminal |
| Spring Material | V clamp: Tin bronze Sn Bz |
| A clamp: Spring bronze S23 | |
| Contact Force | ≥ 10 N (0.4 mm wire core diameter) |
| Contact Surface | V clamp: Ag |
| A clamp: Ag | |
| Suitable for | Solid conductor with a diameter of 0.35 - 0.80 mm; |
| Outside diameter of max. 1.2 mm | |
| Clamp for PCM wires with an outside diameter of max. 1.5 mm (with PE or PVC insulation) | |
| Service Life V Clamp | |
| For 0.35 to 0.6mm | ≥ 200 clampings |
| For 0.8mm Connected on One Side | ≥ 50 clampings |
| For 0.8mm Combined with 0.6mm | ≥ 25 clampings |
| Service Life A Clamp | |
| For 0.35 to 0.6mm | ≥ 400 clampings |
| For 0.8mm Connected on One Side | ≥ 50 clampings |
| For 0.8mm Combined with 0.6mm | ≥ 25 clampings |
| Volume Resistance at Clamping Poin Acc. to DIN IEC 352-3 | ≤ 5 mohms, blank (when new) |
| ≥ 2 mohms, tin-plated (when new) | |
| Resistance Change During The Service Life Acc. to DIN IEC 352-2 | ≤ 1 mohms (based on new) |
| Dielectric Strength Acc. to DIN IEC 512-2 | ≥ 2000 V ~ |
| Current Carrying Cap. Acc. to DIN IEC 512-3 | ≥ 2.5 A at T 20°C |
| ≥ 1.6 A at T 65°C | |
| Insulation Resistance under Lab.Conditions Acc. to DIN IEC 512-2 | ≥ 10^12 ohms (when new) |
| Coupling Capacit. Acc. to DIN IEC 512-9 | ≤ 3 pF |
| Surge Voltage Acc. to VDE 0433 | ≥ 1.5 kV (surge discharge 1.2/5 μs) |
| Module Body | Polycarbonate |
| Utilization Category Acc. to DIN IEC 68 Part 1 | 25/100/21 Cold -25°C |
| Dry heat +100 °C | |

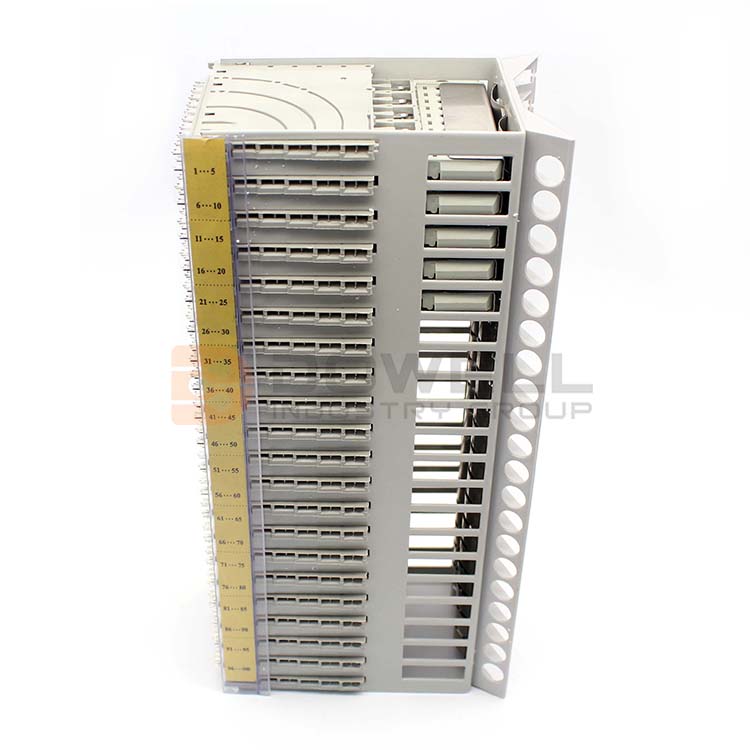

The distribution components of the 71 Series have basically the same structure as the 5000 Series. They offer the following features:
4- or 5-pair organization
Contact wire Φ from 0.4 to 0.8 mm
3-point protection can be plugged in from the
rear IDC contacts accessible when protection is plugged in
The classic area of application of the 71 Series distribution system is the main distribution frame. The MDF is used in, for example:
1. Central offices
2. Customer premises, e.g.
- Company networks
- Universities
- Hospitals
3. Made of ABS
4. Flame retardant
5. Special tool steel(high speed steel) with solid performance
6. For Siemens 71series terminal block termination, blue and grey
7. Cuts excess wire in one click operation
8. Ensures proper insertion of wire
