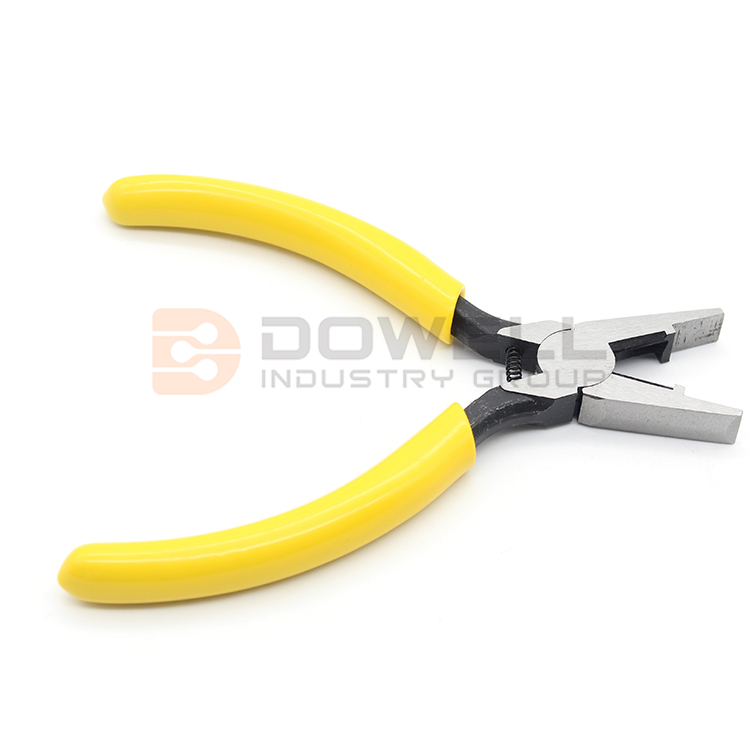

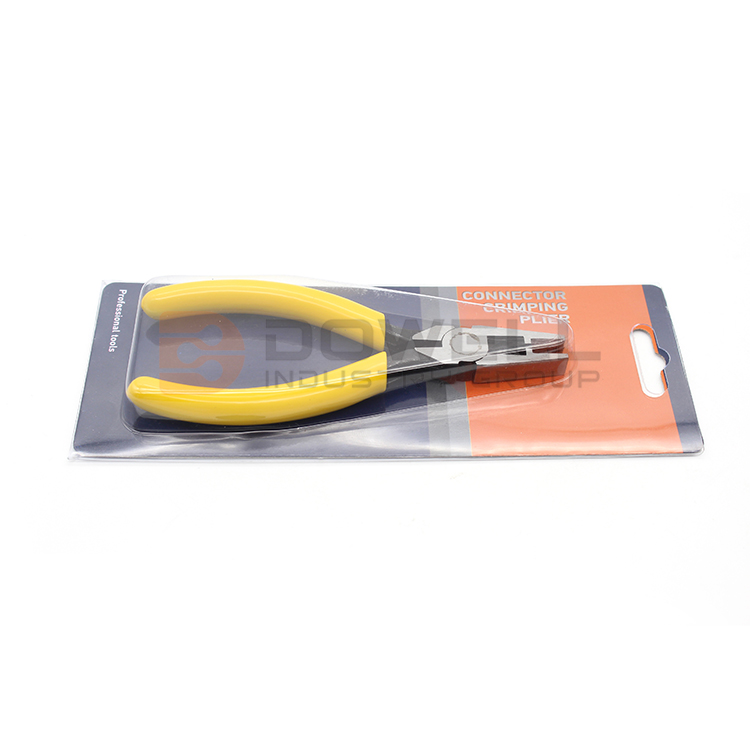

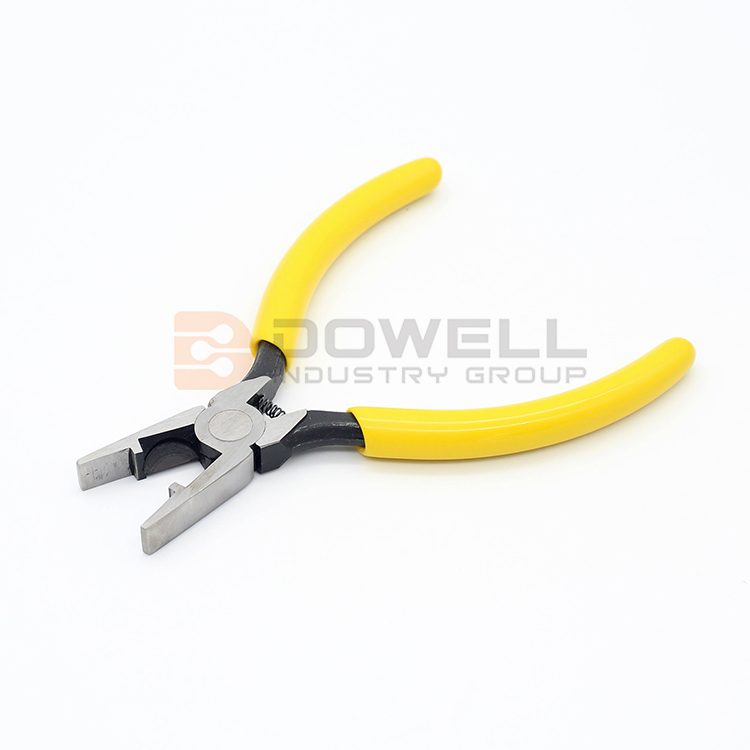

DW-8021 Communication Connector Plier With Side Cutters

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: DOWELL
  • Model Number: DW-8021
  • Type: Combination Pliers
  • Material: Carbon Steel
  • Application: Cutting
  • Certification: CE/SGS
  • Cut Type: Side-Cut
  • Cutter Length: 1/2" (12.7mm)
  • Jaw Length: 1" (25.4mm)
  • Jaw Thickness: 3/8" (9.53mm)
  • Jaw Width: 13/16" (20.64mm)
  • Color: Yellow Handle
  • Length: 5-3/16" (131.76mm)
  • Weight: 0.392 lbs (177.80 grams)
  • Product Name: Communication Connector Plier

Product Description

Connector Crimping Plier is a plier with side cutters. A special stop behind cut out prevents damage to connectors. Utilized on combinations of plastic and pulp insulated 19, 22, 24 and 26 gauge copper conductors as well as 20 gauge plastic insulated copper steel wire. Comes with side cutter and yellow handles.

Cut Type Side-Cut Cutter Length 1/2" (12.7mm)
Jaw Length 1" (25.4mm) Jaw Thickness 3/8" (9.53mm)
Jaw Width 13/16" (20.64mm) Color Yellow Handle
Length 5-3/16" (131.76mm) Weight

0.392 lbs

(177.80 grams)

  • Designed to press UG, UR, UY, 709 series connectors, crimping "B" type connectors,and AMP tel splice connectors.
