This series of OTDR is a multi-functional optical measuring instrument, which integrates auto OTDR, expert OTDR, event map, optical power meter, visual fault location, power adjustable stable light source, end face detection, optical loss test, cable line length / sequence test, cable tracking and other functions. It has touch screen and heys. It is the right assistant for optical cable construction, installation and maintenance, project acceptance and on-site repair.

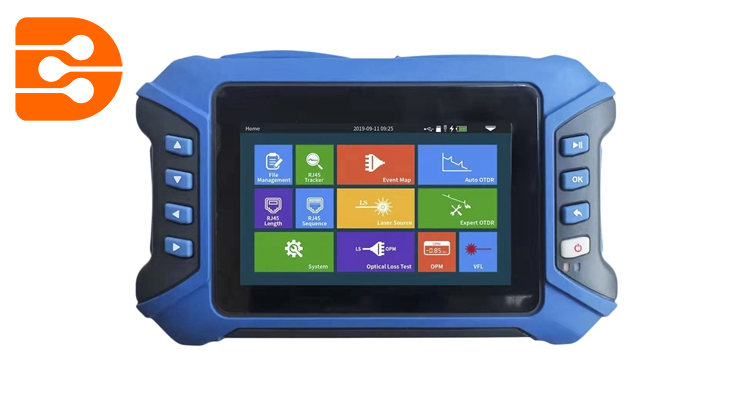

DW-8302H
OTDR series Optical Time Domain Reflectometer is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse; OTDR is specially designed for that kind of application. It’s economic, having outstanding performance.
VFL Module (Visual Fault Locator, as standard function):
Wavelength (±20nm) | 650nm |
Power | 10mw,CLASSIII B |
Range | 12km |
Connector | FC/UPC |
Launching Mode | CW/2Hz |
PM Module (Power Meter, as optional function):
Wavelength Range (±20nm) | 800~1700nm |
Calibrated Wavelength | 850/1300/1310/1490/1550/1625/1650nm |
Test Range | Type A: -65~+5dBm (standard); Type B: -40~+23dBm (optional) |
Resolution | 0.01dB |
Accuracy | ±0.35dB±1nW |
Modulation Identification | 270/1k/2kHz,Pinput≥-40dBm |
Connector | FC/UPC |
LS Module (Laser Source, as optional function):
Working Wavelength (±20nm) | 1310/1550/1625nm |
Output Power | Adjustable -25~0dBm |
Accuracy | ±0.5dB |
Connector | FC/UPC |
FM Module (Fiber Microscope, as optional function):
Magnification | 400X |
Resolution | 1.0µm |
View of Field | 0.40×0.31mm |
Storage/working Condition | -18℃~35℃ |
Dimension | 235×95×30mm |
Sensor | 1/3 inch 2 million of pixel |
Weight | 150g |
USB | 1.1/2.0 |
Adapter
| SC-PC-F (For SC/PC adapter) FC-PC-F (For FC/PC adapter) LC-PC-F (For LC/PC adapter) 2.5PC-M (For 2.5mm connector, SC/PC, FC/PC, ST/PC) |
● FTTX test with PON networks
● CATV network testing
● Access network testing
● LAN network testing
● Metro network testing
