GYFTA Non-metallic Strength Member Non-armored Cable
Product Description
Characteristics
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose tubes from shrinking
PE sheath protects cable from ultraviolet radiation

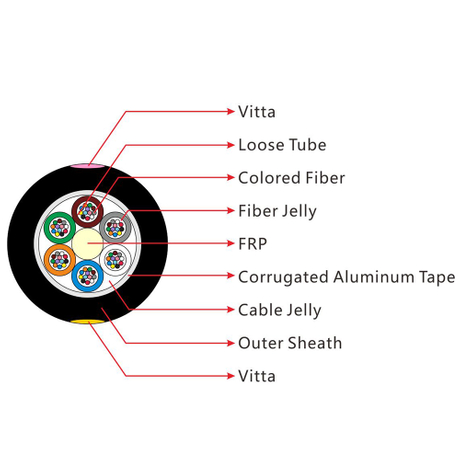

The following measures are taken to ensure the cable watertight:
- Single Fiber Reinforced Plastic as the central strength member
- Loose tube filling compound
- 100% cable core filling
- APL moisture barrier
Standards
GYFTA cable complies with Standard YD/T 901-2009 as well as IEC 60794-1.
Optical Characteristics
G.652 | G.657 | 50/125um | 62.5/125um | ||
Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
@1310nm | ≤0.36dB/km | ≤0.40dB/km | |||
@1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
Bandwidth （ClassA） | @850nm | ≥500Mhz.km | ≥200Mhz.km | ||
@1300nm | ≥1000Mhz.km | ≥600Mhz.km | |||
Numericalaperture | 0.200±0.015NA | 0.275±0.015NA | |||
CableCutoffWavelength | ≤1260nm | ≤1480nm | |||
Technical Parameters
CableType | FiberCount | Tube | Fillers | Cable Diameter mm | Cable Weight Kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short TermN/100m | Bending Radius Static/Dynamic mm |
GYFTA-2~6 | 2-6 | 1 | 5 | 11.4 | 108 | 400/1000 | 300/1000 | 10D/20D |
GYFTA-8~12 | 8-12 | 2 | 4 | 11.4 | 108 | 400/1000 | 300/1000 | 10D/20D |
GYFTA-14~18 | 14-18 | 3 | 3 | 11.4 | 108 | 400/1000 | 300/1000 | 10D/20D |
GYFTA-20~24 | 20-24 | 4 | 2 | 11.4 | 108 | 400/1000 | 300/1000 | 10D/20D |
GYFTA-26~30 | 26-30 | 5 | 1 | 11.4 | 108 | 400/1000 | 300/1000 | 10D/20D |
GYFTA-32~36 | 32-36 | 6 | 0 | 11.4 | 108 | 400/1000 | 300/1000 | 10D/20D |
GYFTA-2~12 | 2-12 | 1 | 5 | 12.8 | 134 | 600/1500 | 300/1000 | 10D/20D |
GYFTA-14~24 | 14-24 | 2 | 4 | 12.8 | 134 | 600/1500 | 300/1000 | 10D/20D |
GYFTA-26~36 | 26-36 | 3 | 3 | 12.8 | 134 | 600/1500 | 300/1000 | 10D/20D |
GYFTA-38~48 | 38-48 | 4 | 2 | 12.8 | 134 | 600/1500 | 300/1000 | 10D/20D |
GYFTA-50~60 | 50-60 | 5 | 1 | 12.8 | 134 | 600/1500 | 300/1000 | 10D/20D |
GYFTA-62~72 | 62-72 | 6 | 0 | 12.8 | 134 | 600/1500 | 300/1000 | 10D/20D |
GYFTA-74~84 | 74-84 | 7 | 1 | 14.8 | 176 | 1000/3000 | 300/1000 | 10D/20D |
GYFTA-86~96 | 86-96 | 8 | 0 | 14.8 | 176 | 1000/3000 | 300/1000 | 10D/20D |
GYFTA-98~108 | 98-108 | 9 | 1 | 17.1 | 226 | 1000/3000 | 300/1000 | 10D/20D |
GYFTA-110~120 | 110-120 | 10 | 0 | 17.1 | 226 | 1000/3000 | 300/1000 | 10D/20D |
GYFTA-122~132 | 122-132 | 11 | 1 | 19.2 | 279 | 1000/3000 | 300/1000 | 10D/20D |
GYFTA-134~144 | 134-144 | 12 | 0 | 19.2 | 279 | 1000/3000 | 300/1000 | 10D/20D |
