| Housing Material | PC (UL 94V-0) | Contacts Conductor | Phosphor bronze,surface nickel or silver plated |
| Potting Sealant | Epoxy resin | Terminating Screws | Zinc alloy,plating nickel |
| Cable and Plug Sealant | Silicone fluid,melting point >90℃ | Die-Electric Intensity | DC 1000V (AC 700V), nospark over and fly arc in one min |
| Gauge Range | 0.4-1.2mm diameter | Insulation Diameter | 5mm maximum diameter |
| Wire Pull Out Force | ≥50N | Termination Torque | ≤1N/m |
| Plug Insertion Force | <50N | Plug Withdrawal Force | <35N |
| Temperature Range | -30℃~60℃ | Relative Humidity | 95% |

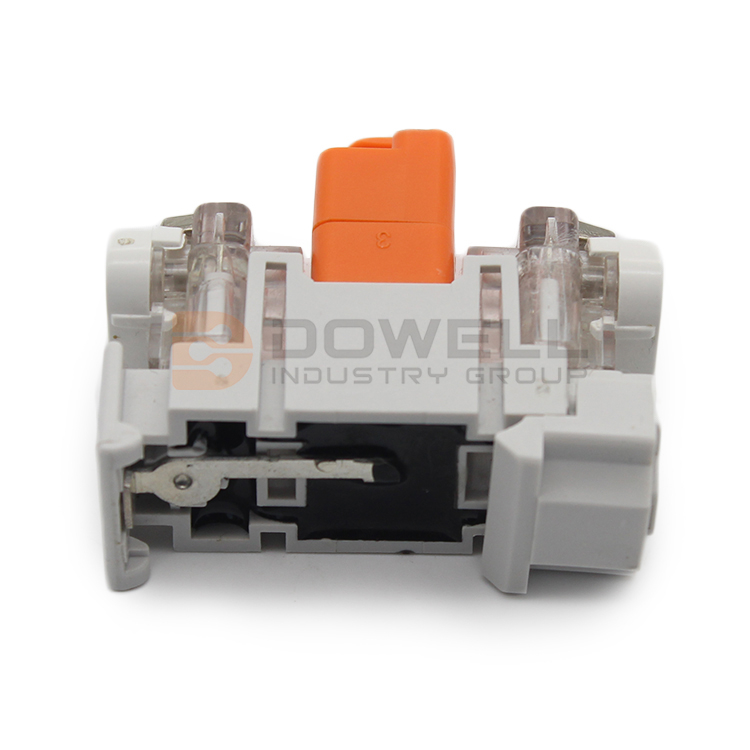

1-Pair Drop Wire (STB) Module Without Protection is a copper pair connector specifically designed to fit onto 35mm DIN rails, It is designed to connect 2 copper pairs and has common features such as:
1.Water proof, sealed IDC termination
2.Disconnection and testing facilities
3.Tooless termination
4.5 point protection plug with 1×3-pole GDT 230V 5A/5KA and 2×PTCRs in series.
The subscriber connector unit is used for the connection of an outdoor to an indoor drop wire. It allows for circuit testing in both network directions.The box provides environmental protection. The product is specially recommended for aggressive environmental conditions,terminations where future requirements may include different types of protection.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
