●Suitable for 0.25/0.9/2.0/3.0mm fibers,test distance up to 5KM
● Easy-to-use with “ONE KEY” operation.
● Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.
● Displays the relative core power
● More accurate test with Sunshade
● Easy-to-replace adaptors
● LED backlight display,equiped with LED light
● Lower power indication,Test sensitivity:-40dBm to 10 dBm
DW-OFI3
Availability: | |
---|---|

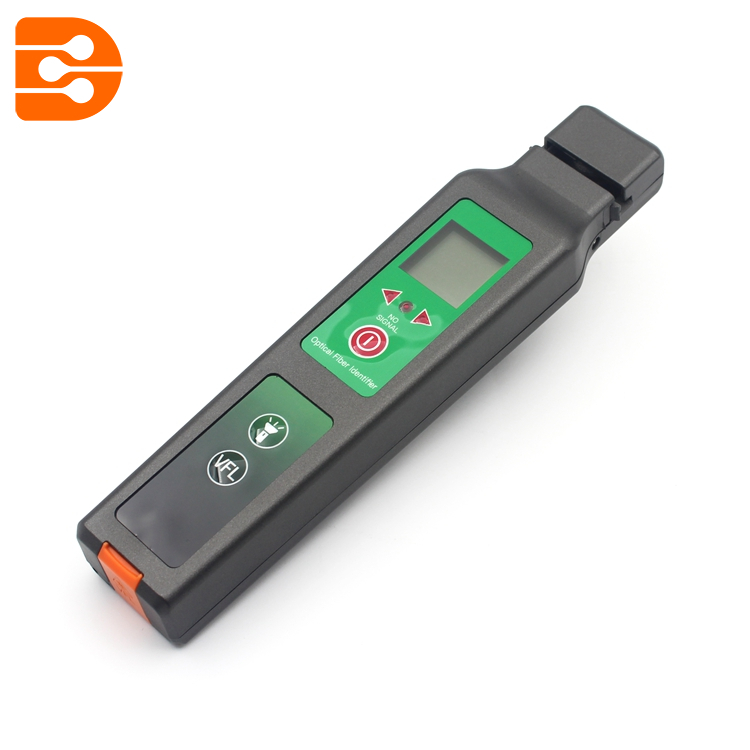

Our Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bend fiber. When the traffic is present, the intermittently audible tone is activated.
This optical fiber identifier also recognizes the modulation like 270Hz, 1kHz and 2kHz. When they are used to detect the frequency, the continuously audible tone is activated. There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. This optical fiber identifier is powered by a 9V alkaline battery.
Three Items offered: DW-OFI / DW-OFI2/DW-OFI3
Identified Wavelength Range | 800-1700 nm | |
Identified Signal Type | CW, 270Hz±5%,1kHz±5%,2kHz±5% | |
Detector Type | Ø1mm InGaAs 2pcs | |
Adapter Type | Ø0.25 (Applicable for Bare Fiber),Ø0.9 (Applicable for Ø0.9 Cable ) | |
Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable ) | ||
Signal Direction | Left & Right LED | |
Singe Direction Test Range (dBm, CW/0.9mm bare fiber) | -46~10(1310nm) | |
-50~10(1550nm) | ||
Signal Power Test Range (dBm, CW/0.9mm bare fiber) | -50~+10 | |
Signal Frequency Display (Hz) | 270, 1k, 2k | |
Frequency Test Range (dBm, Average Value) | Ø0.9, Ø2.0, Ø3.0 | -30~0 (270Hz,1KHz) |
-25~0 (2KHz) | ||
Ø0.25 | -25~0 (270Hz,1KHz) | |
-20~0 (2KHz) | ||
Insertion Loss(dB, Typical Value) | 0.8 (1310nm) | |
2.5 (1550nm) | ||
Alkaline Battery(V) | 9 | |
Operating Temperature(℃) | -10-+60 | |
Storage Temperature(℃) | -25-+70 | |
Dimension (mm) | 196x30.5x27 | |
Weight (g) | 200 |
