● Tool free termination
● Long life service with gel filled
● T-connection facility
● Comprehensive range
● Flush or wall mount boxes
DW-7019-G

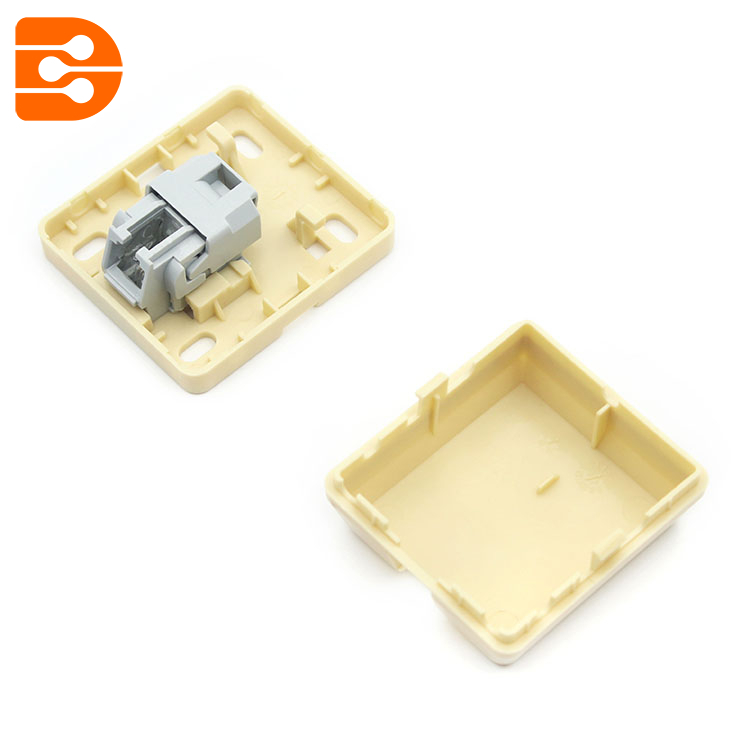

DW-7019-G is a toolless RJ11(6P2C) surface box with Gel inside.
| Material | Box: ABS; Jack: PC ( UL94V-0) |
| Dimensions | 55×50×21.9mm |
| Wire Diameter | φ0.5~φ0.65mm |
| Storage Temperature Range | -40℃~+90℃ |
| Operating Temperature Range | -30℃~+80℃ |
| Relative Humidity | <95%(at20℃) |
| Atemospheric Pressure | 70KPa~106KPa |
| Insulation Resistance | R≥1000M Ohm |
| High current holding | 8/20us wave(10KV) |
| Contact Resistance | R≤5m ohm |
| Dielectric Strength | 1000V DC 60s can’t spark over and haven’t fly arc |
