| Insulation Resistance | >1x10^10 Ω | Contact Resistance | < 10 mΩ |
| Dielectric Strength | 3000V rms,60Hz AC | High Voltage Surge | 3000 V DC Surge |
| Operating Temperature Range | -20°C to 60°C | Storage Temperature Range | -40°C to 90°C |
| Body Material | Thermoplastic | Contact Material | Bronze |
| Size | 135x26x20 mm | Weight | 0.043 kg |

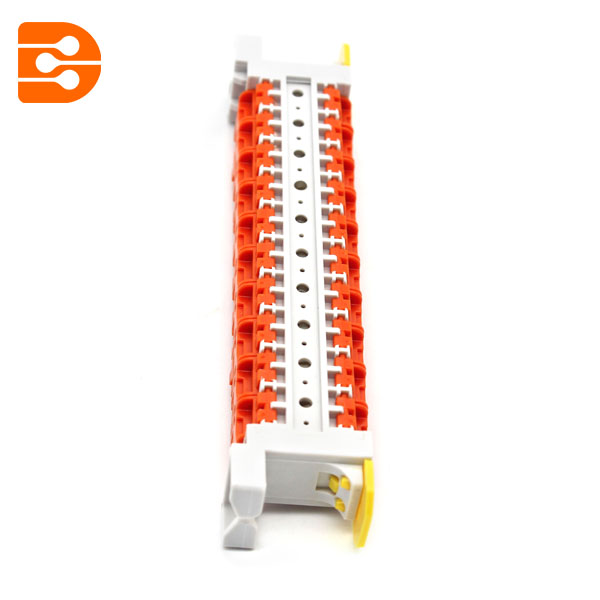

Quick Connect System(QCS) 2810 is an insulation displacement connector (IDC) termination system. The QCS 2810 system is a simpleto-use, tool-less copper block; an ideal solution for outside plant applications. Whether in crossconnect cabinets or at the edgeof the network, the gel-filled 2810 system is the solution.
The Quick Connect System 2810 can be used throughout the networkas the common interconnectivity and termination platform. Designed specifically for rugged use and robust performance in the outside plant,the QCS 2810 system is ideal for use in pole wall mount cable terminals,distribution pedestals, strand or drop wire terminals, cross-connect cabinets and remote terminals.
