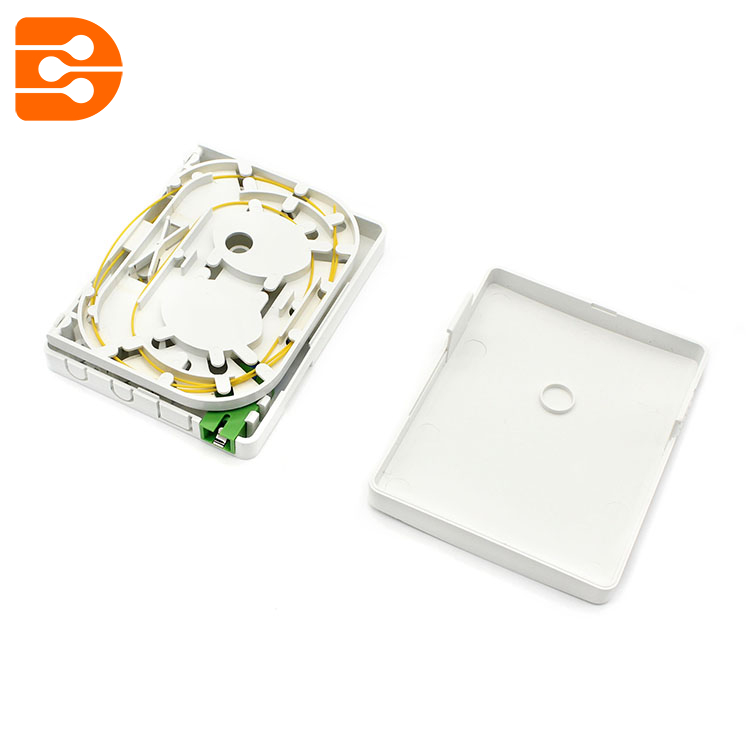

Our optical distribution box terminates one fiber optic cable with up to 2 cores, connecting the drop cable and ONU devices through fiber port. It brings significant improvements resulting in better customer experience when FTTH have to be deployed.
DW-1081
Availability: | |
---|---|
● ABS+PC material used ensures the body strong and light
● Easy installations: Mount on wall or just put on the ground
● Splicing tray can be removed when needed or during the installation for the convenient operation and installation
● Adapter slots adopted – No screws needed for installing adapters
● Plug fiber with no need to open the shell, easily accessible fiber operation
● Double-layer design for easier installation and maintenances
○ Upper layer for splicing
○ Lower layer for distribution
Adapter Capacity | 2 fibers with SC adapters | Number of Cable Entrance/Exit | 3/2 |
Capacity | Up to 2 cores | Installation | Wall Mounted |
Optional Accessories | Adapters, Pigtails | Temperature | -5oC ~ 60oC |
Humidity | 90% at 30°C | Air Pressure | 70kPa ~ 106kPa |
Size | 100 x 80 x 22mm | Weight | 0.16kg |
