DW-1083
1 fibers with SC adapter / 2 fibers with LC duplex adapters
86mm*155mm*23mm
Indoor
Availability: | |
---|---|

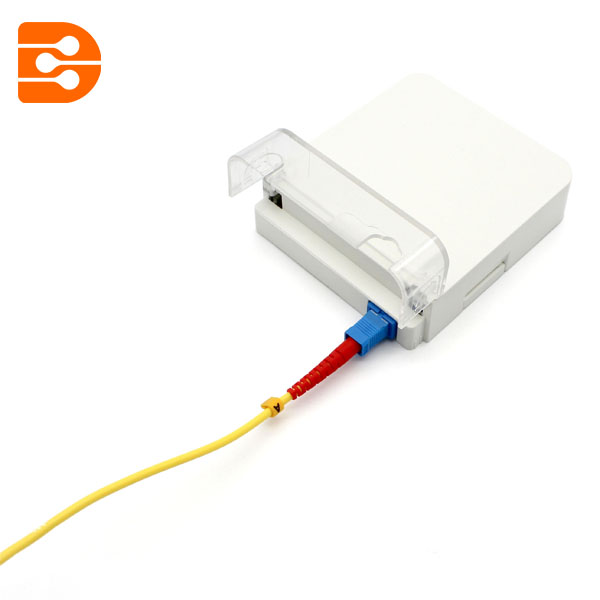

Fiber Optic Terminal Socket
Features
1. Used for different kinds of modules and applied to the working area subsystem.
2. Embedded surface frame, easy to install and disassemble.
3. The fiber optic terminal box with protective door and dusty free.
4. With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate.
5. All modules are free of welding.
6. Can do OEM for any customers and print requested LOGO.
Applications
1. The telecommunication network, metropolitan area network, optical fiber communication system.
2. Optical testing equipment/instrument.
3. CATV optical fiber, optical fiber sensor.
4. Optical fiber broadband access network, FTTH optical fiber.
5. Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Dimensions and Capability
Dimensions (W*H*D) | 86mm*155mm*23mm |
Adapter Capacity | Accommodates 1 fibers with SC adapter 2 fibers with LC duplex adapters |
Application | 3.0 x 2.0 mm drop cable or indoor cable |
Fiber Diameter | 125μm ( 652 & 657 ) |
Tight Cladding Diameter | 250μm & 900μm |
Applicable Mode | Single mode & Duplex mode |
Tensile strength | > 50 N |
Insertion loss | ≤0.2dB(1310nm & 1550nm) |
Output | 1 |
Operation Conditions
Temperature | -40℃ - +85℃ |
Humidity | 90% at 30℃ |
Air Pressure | 70kPa – 106kPa |
