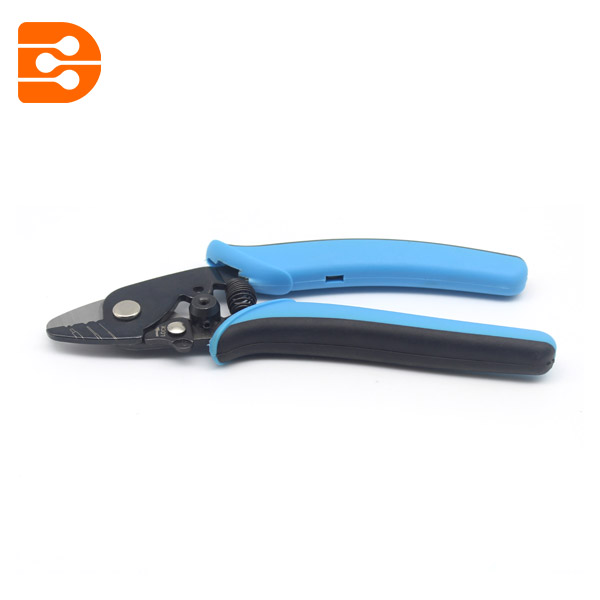

3 Holes Fiber Optic Stripper

  • DW-1602



Three hole Fiber Optic Stripper model performs all common fiber stripping functions. The first hole of this Fiber Optic Stripper strips the 1.6-3 mm fiber jacket down to the 600-900 micron buffer coating. The second hole strips the 600-900 micron buffer coating down to the 250 micron coating and the third hole is used to strip the 250 micron cable down to the 125 micron glass fiber without nicks or scratches. Handle is made of TPR (Thermoplastic Rubber).


1. First hole: Stripping the 1.6-3 mm fber jacket down to the 600-900 micron bufer coating

2. Second hole: Stripping the 600-900 micron bufer coating down to the 250 micron coating

3. Third hole: Stripping the 250 micron cable down to the 125 micron glass fber without nicks or scratches


Specifications
Cut Type Strip
Cable Type Jacket, Buffer, Acrylate Coating
Cable Diameter   125 micron, 250 micron, 900 micron,1.6-3.0 mm
Handle TPR (Thermoplastic Rubber)
Color Blue Handle
Length 6” (152mm)
Weight 0.309 lbs
