● Using high precision ceramic ferrule
● Low insertion loss and high return loss
● Excellent stability and high repetition
● 100% Optic test (Insertion Loss & Return Loss)

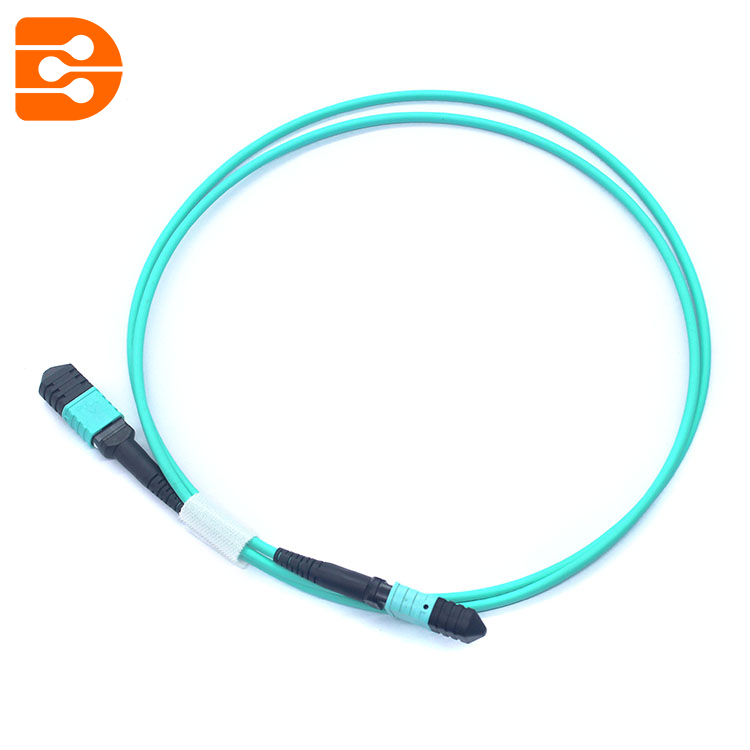

DW-MPO-MPO-M3
Availability: | |
---|---|
Fiber Optic Patchcords are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC ST E2000N MTRJ MPO MTP etc. with single mode(9/125um) and multimode (50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.
Specification | SM Standard | MM Standard | ||
MPO | Typical | Max | Typical | Max |
Insertion Loss | 0.2 dB | 0.7 dB | 0.15 dB | 0.50 dB |
Return Loss | 60 dB (8°Polish) | 25 dB (Flat Polish) | ||
Durability | <0.30dB change 500 matings | <0.20dB change 1000 matings | ||
Ferrule Type Available | 4, 8, 12, 24 | 4, 8, 12, 24 | ||
Operating Temperature | -40 to +75ºC | |||
Storage Temperature | -40 to +85ºC |
Wire Map Configurations | |||||
Straight Type A wiring | Total Flipped Type B wiring | Pair Flipped Type C Wiring | |||
Fiber | Fiber | Fiber | Fiber | Fiber | Fiber |
1 | 1 | 1 | 12 | 1 | 2 |
2 | 2 | 2 | 11 | 2 | 1 |
3 | 3 | 3 | 10 | 3 | 4 |
4 | 4 | 4 | 9 | 4 | 3 |
5 | 5 | 5 | 8 | 5 | 6 |
6 | 6 | 6 | 7 | 6 | 5 |
7 | 7 | 7 | 6 | 7 | 8 |
8 | 8 | 8 | 5 | 8 | 7 |
9 | 9 | 9 | 4 | 9 | 10 |
10 | 10 | 10 | 3 | 10 | 9 |
11 | 11 | 11 | 2 | 11 | 12 |
12 | 12 | 12 | 1 | 12 | 11 |
● Telecommunication Network
● Fiber Broad Band Network
● CATV system
● LAN and WAN system
● FTTP
