● Using high precision ceramic ferrule
● Low insertion loss and high return loss
● Excellent stability and high repetition
● 100% Optic test (Insertion Loss & Return Loss)

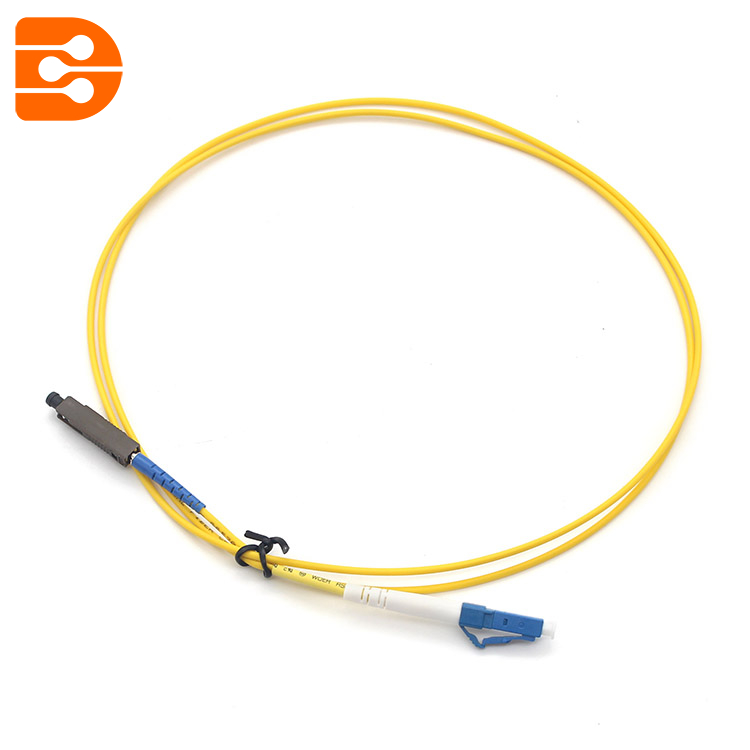

DW-LUS-MUS
Fiber Optic Patchcords are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC ST E2000N MTRJ MPO MTP etc. with single mode(9/125um) and multimode (50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.
Parameter | Unit | Mode Type | PC | UPC | APC |
Insertion Loss | dB | SM | <0.3 | <0.3 | <0.3 |
MM | <0.3 | <0.3 | |||
Return Loss | dB | SM | >50 | >50 | >60 |
MM | >35 | >35 | |||
Repeatability | dB | Additional loss< 0.1, return loss< 5 | |||
Interchangeability | dB | Additional loss< 0.1, return loss< 5 | |||
Connection Times | times | >1000 | |||
Operating Temperature | °C | -40 ~ +75 | |||
Storage Temperature | °C | -40 ~ +85 | |||
Test Item | Test Condition and Test Result |
Wet-resistance | Condition: under temperature:85°C, relative humidity 85% for 14days. Result: insertion losss0.1dB |
Temperature Change | Condition: under temperature -40°C~+75°C, relative humidity 10 % -80 % , 42 times repetition for 14days. Result: insertion losss0.1dB |
Put in Water | Condition: under temperature 43C, PH5.5 for 7days Result: insertion losss0.1dB |
Vibrancy | Condition: Swing1.52mm, frequency 10Hz~55Hz, X, Y, Z three directions:2 hours Result: insertion losss0.1dB |
Load Bend | Condition: 0.454kg load, 100 circles Result: insertion losss0.1dB |
Load Torsion | Condition: 0.454kgload, 10 circles Result: insertion loss s0.1dB |
Tensibility | Condition: 0.23kg pull (bare fiber), 1.0kg (with shell) Result: insertions0.1dB |
Strike | Condition: High 1.8m, three directions ,8 in each direction Result: insertion losss0.1dB |
Reference Standard | BELLCORE TA-NWT-001209, IEC, GR-326-CORE standard |
● Telecommunication Network
● Fiber Broad Band Network
● CATV system
● LAN and WAN system
● FTTP
