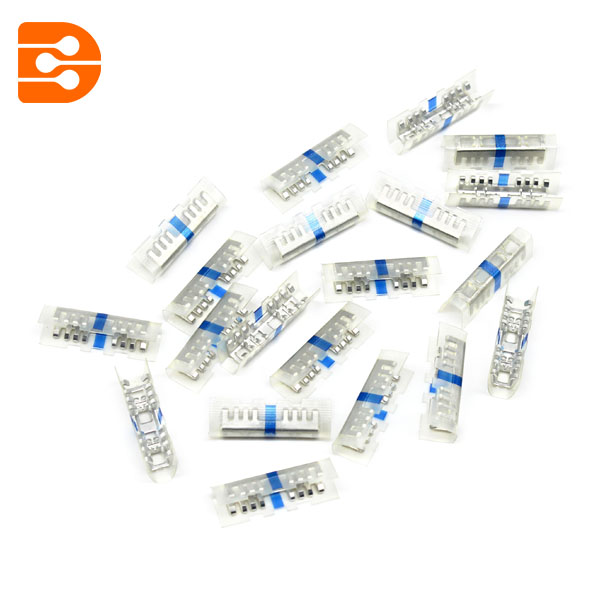

PICABOND connectors provide an economical and reliable means of splicing multiconductor telephone cable.
1. Lightweight and compact, PICABOND splices reduce the space 33% than other.
2.Suitable for the cable size: 26AWG – 22AWG
3.Save time – no prestripping or cutting required, can tap without service interruptions
4.Economical – Lower applied cost, minimum training required, higher application rates
5.Convenient – Use the small hand tool, easy to operation
| Plastic Cover (Mini Type) | PC with blue coading (UL 94v-0) |
| Plastic Cover (Green Type) | PC with green coading (UL 94v-0) |
| Base | Tin-plated brass / bronze |
| Wire Insertion Force | 45N typical |
| Wire Pull Out Force | 40N typical |
| Cable Size | Φ0.4-0.6mm |
1.Splicing
2.Central Office
3.Manhole
4.Aerial Pole
5.CEV
6.Pedestal
7.Demarcation Points
