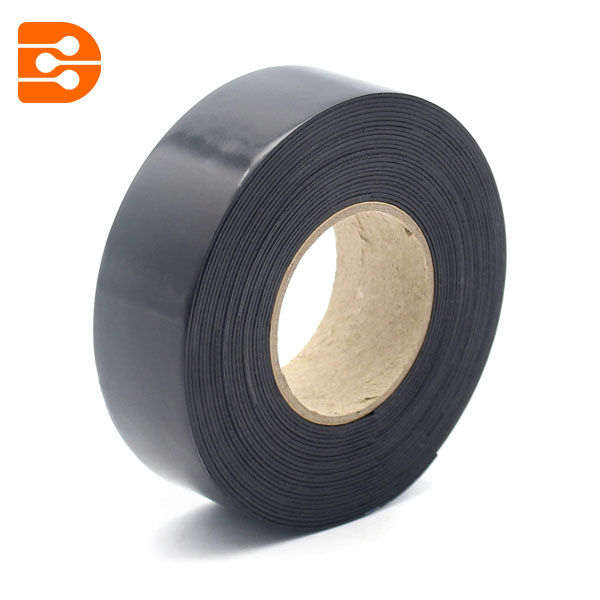

Scotch Super 33+ Vinyl Electrical Tape

  • DW-33

Product Description




Super 33+ Tape is an abrasion-resistant tape that offers electrical and mechanical protection with the combination of an aggressive, rubber-resin adhesive and an elastic PVC backing.

This tape is highly resistant to UV rays, moisture, alkalis, acids, corrosion and varying weather conditions. It is a ideal choice for providing a protective jacket for low- and high-voltage buses, as well as harness cables/wires. This tape is compatible with solid, dielectric cable insulations, rubber and synthetic splicing compounds, as well as epoxy and polyurethane resins.



Attribute Name

Value

Adhesion to Steel

3,0 N/cm

Adhesive Material

Rubber Resin, The adhesive layer is a rubber-based

Adhesive Type

Rubber

Application/Industry

Appliance and Fixture, Automotive and Marine, Commercial Construction, Communications, Industrial Construction, Irrigation, Maintenance and Repair Operations, Mining, Residential Construction, Solar, Utility, Wind Power

Applications

Electrical Maintenance

Backing Material

Polyvinyl Chloride, Vinyl

Backing Thickness (metric)

0.18 mm

Breaking Strength

15 lb/in

Chemical Resistant

Yes

Color

Black

Dielectric Strength (V/mil)

1150, 1150 V/mil

Elongation

2.5 %, 250 %

Elongation at Break

250%

Family

Super 33+ Vinyl Electrical Tape

Flame Retardant

Yes

Insulated

Yes

Length

108 Linear Foot, 20 Linear Foot, 36 Linear Yard, 44 Linear Foot, 52 Linear Foot, 66 Linear Foot

Length (Metric)

13.4 m, 15.6 m, 20.1 m, 33 m, 6 m

Material

PVC

Maximum Operating Temperature (Celsius)

105 Degree Celsius

Maximum Operating Temperature (Fahrenheit)

221 Degree Fahrenheit

Operating Temperature (Celsius)

-18 to 105 Degree Celsius, Up to 105 Degree Celsius

Operating Temperature (Fahrenheit)

0 to 220 Degree Fahrenheit

Product Type

Vinyl Electrical Tapes

RoHS 2011/65/EU Compliant

Yes

Self-Extinguishing

Yes

Self Sticking/Amalgamating

No

Shelf Life

5 Year

Solution for

Wireless Network: Infrastructure Accessories, Wireless Network: Weatherproofing

Specifications

ASTM D-3005 Type 1

Suitable for High Voltage

No

Tape Grade

Premium

Tape Type

Vinyl

Tape Width (metric)

19 mm, 25 mm, 38 mm

Total Thickness

0.18 mm

Voltage Application

Low Voltage

Voltage Rating

600 V

Vulcanizing

No
