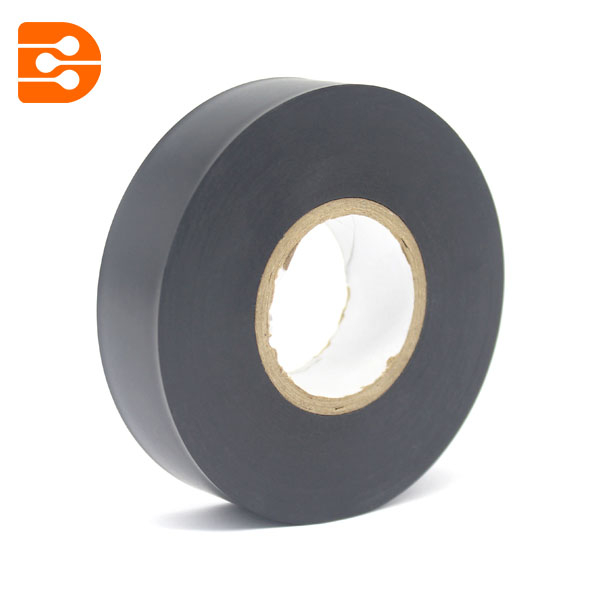

It is made of a SPVC matte film coated with a non-corrosive adhesive on one side, which can resist high voltage and cold well. It is a low lead and low cadmium product. Application for electrically insulation in wires and cables, especially for degaussing coils. UL listed and CSA approved.
PHYSICAL PROPERTIES | |
Total Thickness | 7.5mils (0.190±0.019mm) |
Tensile Strength | 17 lbs./in. (29.4N/10mm) |
Elongation at Break | 200% |
Adhesion to steel | 16 oz./in. (1.8N/10mm) |
Dielectric Strength | 7500 volts |
Lead Content | <1000PPM |
Cadmium Content | <100PPM |
Flame Retardant | Pass |
NOTE:
The physical and performance properties shown are averages obtained from tests recommended by ASTM D-1000, or our own procedures. A particular roll may vary slightly from these averages and it is recommended that the buyer determine the suitability for his own purposes.
STORAGE DETAILS:
Shelf life recommended one year from the date of dispatch at the moderate temperature and humidity environment.
