The fast connector (Field assembly connector or field terminated fiber connector, quickly assembly fiber connector) is a revolutionary filed installable optic fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexible of optical wiring design as well as reducing the time required for fiber termination. The fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN&CCTV applications and FTTH.
DW-FCA-SCU

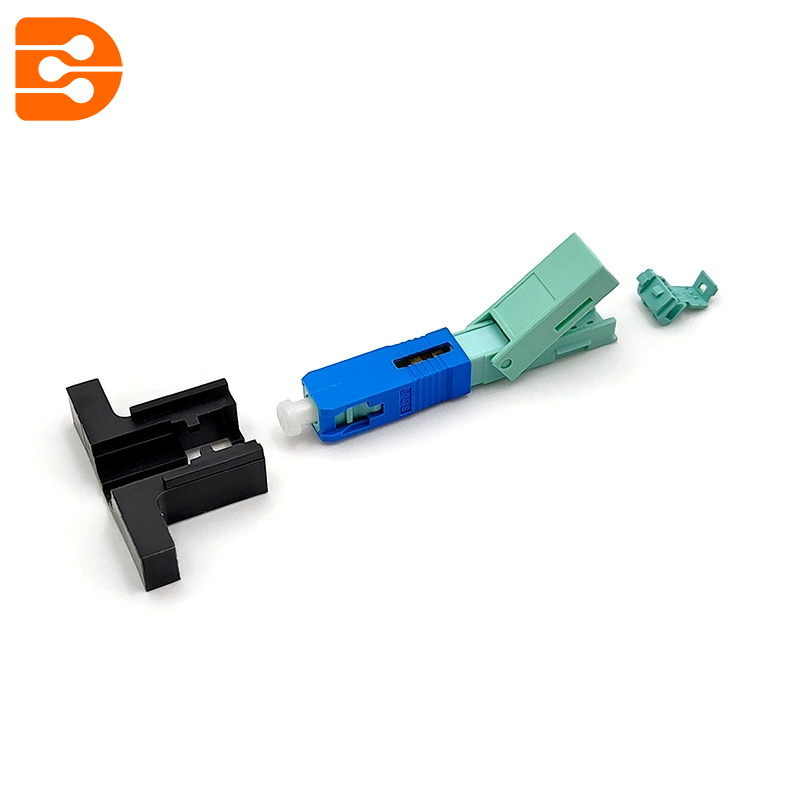

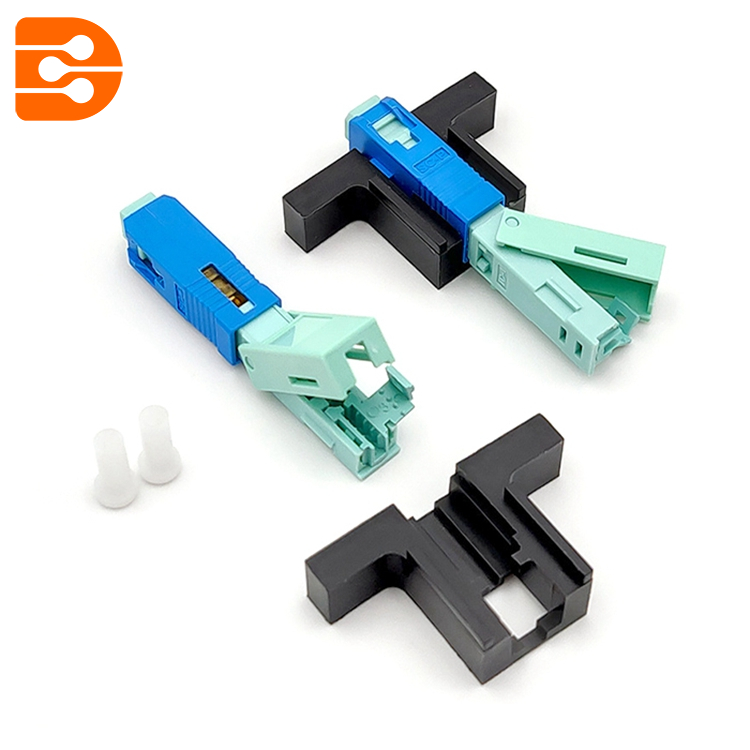

SC Field Fast Connector
The Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver.

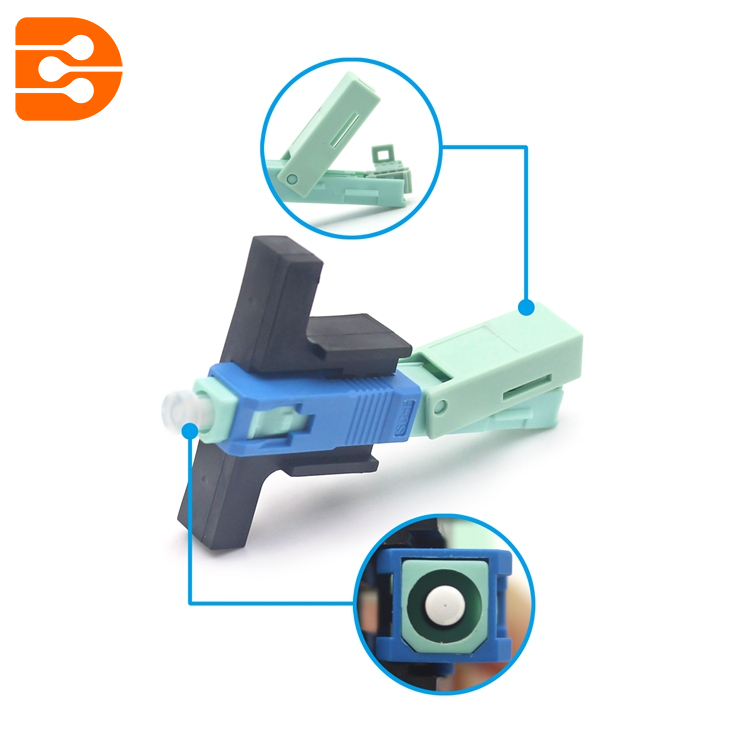

The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.
Item | Parameter | |
Cable Scope | Ф3.0 mm & Ф2.0 mm Cable | |
Fiber Diameter | 125μm ( 652 & 657 ) | |
Coating Diameter | 900μm | |
Mode | SM | |
Operation Time | about 4min（exclude fiber presetting） | |
Insertion Loss | ≤ 0.3 dB（1310nm & 1550nm）, Max ≤ 0.5 dB | |
Return Loss | ≥50dB for UPC, ≥55dB for APC | |
Success Rate | >98% | |
Reusable Times | ≥10 times | |
Tighten Strength of Bare Fiber | >3N | |
Tensile Strength | >30 N/2min | |
Temperature | -40～+85℃ | |
On-line Tensile Strength Test (20 N) | △ IL ≤ 0.3dB | |
Mechanical Durability（500 times） | △ IL ≤ 0.3dB | |
Drop Test（4m concrete floor, once each direction, three times total） | △ IL ≤ 0.3dB | |
It could be applied to drop cable and indoor cable.Application FTTx，Data Room Transformation.
