● Check wiring error for STP/UTP, Coax cable, such as open short, cross connection
● Memory function for calibration data storage
● Portable unit with long battery life
● Automatically time-delay shut off

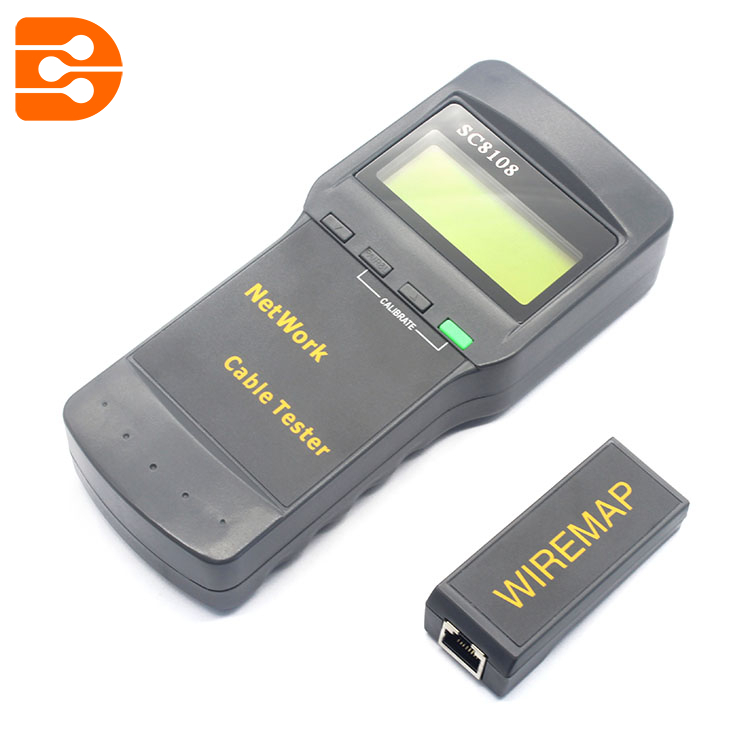

DW-8104
● WireMap: It obtains the continuity for each one of the wires of the cable and the pin-out of the same ones. The result obtained is a pin-out graphic on the screen from pin-A to pin-B or error for each of the pins. It also shows those cases of crossing between two or more hilos
● Pair-and-Length: Function that allows to calculate the length of a cable. It has TDR (Time Domain Reflectometer) technology that measures the distance of the cable and the distance to a possible error if there is one. In this way you can repair damaged cables already installed and without having to re-install a whole new cable. It works at the level of pairs.
● Coax/Tel: To check telephone and coax cable sales Check the continuity of it.
● SetUp: Configuration and calibration of the Network Cable Tester.
| Transmitter Specifications | ||
| Indictor | LCD 53x25 mm | |
| Max. Distance of Cable Map | 300m | |
| Max. Working Current | Less than 70mA | |
| Compatible Connectors | RJ45 | |
| Faults LCD Display | LCD display | |
| Battery Type | 1.5V AA Battery *4 | |
| Dimension (LxWxD) | 184x84x46mm | |
| Remote Unit Specifications | ||
| Compatible Connectors | RJ45 | |
| Dimension (LxWxD) | 78x33x22mm | |
● WireMap: It obtains the continuity for each one of the wires of the cable and the pin-out of the same ones. The result obtained is a pin-out graphic on the screen from pin-A to pin-B or error for each of the pins. It also shows those cases of crossing between two or more hilos
● Pair-and-Length: Function that allows to calculate the length of a cable. It has TDR (Time Domain Reflectometer) technology that measures the distance of the cable and the distance to a possible error if there is one. In this way you can repair damaged cables already installed and without having to re-install a whole new cable. It works at the level of pairs.
● Coax/Tel: To check telephone and coax cable sales Check the continuity of it.
● SetUp: Configuration and calibration of the Network Cable Tester.
| Transmitter Specifications | ||
| Indictor | LCD 53x25 mm | |
| Max. Distance of Cable Map | 300m | |
| Max. Working Current | Less than 70mA | |
| Compatible Connectors | RJ45 | |
| Faults LCD Display | LCD display | |
| Battery Type | 1.5V AA Battery *4 | |
| Dimension (LxWxD) | 184x84x46mm | |
| Remote Unit Specifications | ||
| Compatible Connectors | RJ45 | |
| Dimension (LxWxD) | 78x33x22mm | |
