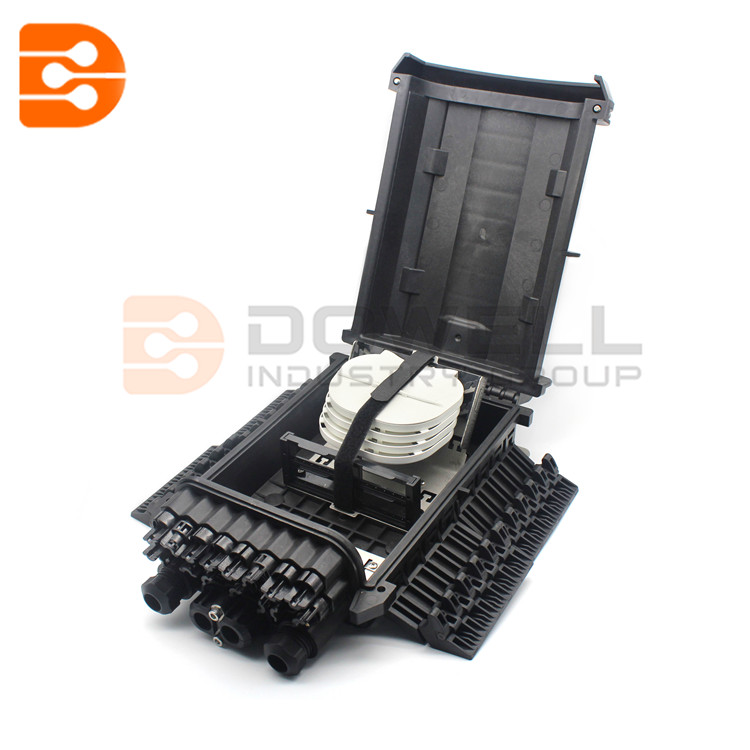

16 Core FTTH Fiber Optic Dome Joint Enclosure Box Optical Cable Splice Closure

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: DOWELL
  • Model Number: DW-1219-16
  • Certification: CE/SGS
  • Product name: Box Optical Cable Splice Closure
  • Color: black
  • Sealing: IP67
  • Pull Force: 100N
.

Description
FTTH Drop Cable Type Fiber Optic Splice & Splitter Closure features with ruggedness, which is tested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience.

Features
1.Dis-mountable adaptor panel
2.Support midspan termination
3.Easy operation and installation
4.Rotatable and dis-mountable splice tray for easy splicing

Applications
1.Wall mounting & pole mounting installation
2.2*3mm Indoor FTTH Drop Cable and Outdoor Figure 8 FTTH Drop Cable

Specification
Model DW-1219-24 DW-1219-16
Adapter 24pcsof SC 16pcs of SC
Cable Ports 1 uncut port 1 uncut port 2 round ports
Applicable Cable Diameter 10-17.5mm 10-17.5mm 8-17.5mm
Drop Cable Ports 24 ports 16 ports
Applicable Cable Diameter 2*3mm FTTH Drop Cable, 2*5mm Figure 8 FTTH Drop Cable
Dimension 385*245*130mm 385*245*130mm
Material modified polymer plastic
Sealing Structure mechanical sealing
Color black
Maximum Splicing Capacity 48 fibers (4 trays, 12 fibers/tray)
Applicable Splitter lp c of 1*16 PLC Splitter or 2pcs of 1*8 PLC Splitters
Sealing IP67
Impact Test IklO
Pull Force 100N
Midspan Entry yes
Storage (Tube/Micro Cable) yes
Net Weight 4kg
Gross Weight 5 kg
Packing 540*410*375mm (4pcs per carton)

Q: Are you trading company or manufacturer ?

A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
