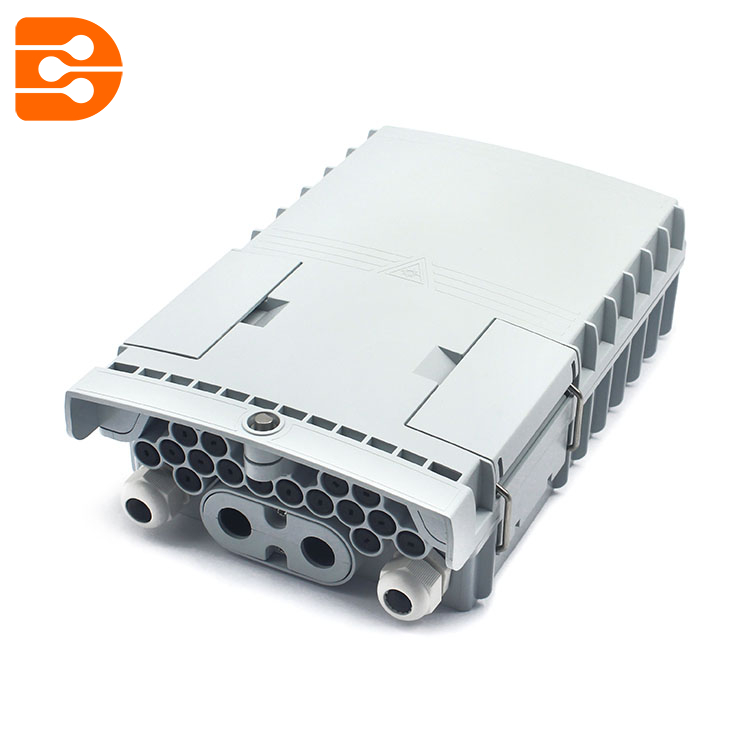

This box can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements. It can help splicing, splitting, storage and management with suitable space.
DW-1223
● The body is made of high-quality engineering plastic with good strength;
● With safe special-shaped lock, the box can be opened easily and has good water-proof performance, suitable for indoor and outdoor natural environments;
● With the independent rubber sealing plug for drop cable, better waterproof performance;

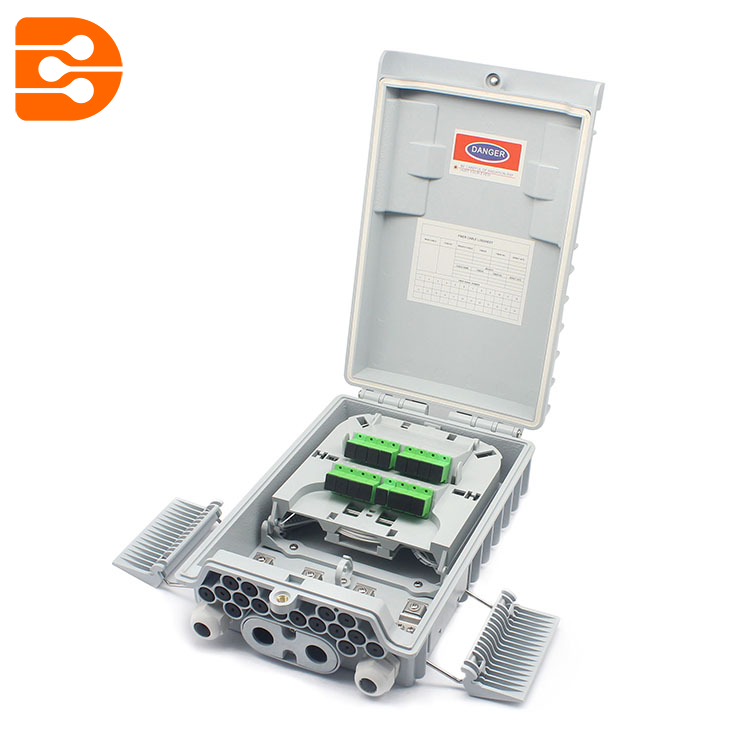

● With double-page design, the box can be installed and maintained easily,
the fusion and termination are completely separated;
● The drop leaf can be installed 2 pcs of 1*8 tube splitter;
Capacity | 16 cores | Protection Level | IP55 |
Material | PC+ABS, ABS | Flame retardant performance | Non-flame retardant |
Dimension (L*W*D, MM) | 174*292*80 | Splitter | Can be with 2x1:8 tube splitter |
● The body is made of high-quality engineering plastic with good strength;
● With safe special-shaped lock, the box can be opened easily and has good water-proof performance, suitable for indoor and outdoor natural environments;
● With the independent rubber sealing plug for drop cable, better waterproof performance;
● With double-page design, the box can be installed and maintained easily,
the fusion and termination are completely separated;
● The drop leaf can be installed 2 pcs of 1*8 tube splitter;
Capacity | 16 cores | Protection Level | IP55 |
Material | PC+ABS, ABS | Flame retardant performance | Non-flame retardant |
Dimension (L*W*D, MM) | 174*292*80 | Splitter | Can be with 2x1:8 tube splitter |
