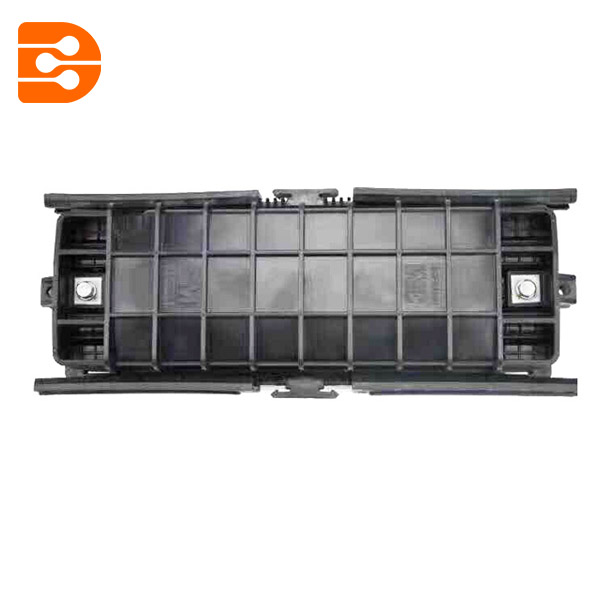

48 Cores Fibre Optic Closure

  • DW-2179-CS
  • 48 cores
  • 12mm*4.7mm* 3.3mm
  • Molded plastic
  • Indoor

48 Cores Fibre Optic Closure





Features:

TheFibre Optic Closure 21 79-CS is made of plastic molded parts and mastic sealing materials. Closing of the fiber optic closure is simply done by thesliding latching mechanism. 2179-CS latching system provides short installation time and easyre-entry. There is no need for special tooling for closing and opening the DOWELL closure.


Description:

1. Suitable for limited space applications, too (hadholes)

2. Covers different splice methods for low fibre count applicatio

3. Reduced inventory

4. Easy application

5. Applicable for all networks FTTH /FTTC solutions

6. Wide area of usage; underground,aerial, direct buried, pedestal

7. No requirement for special tooling. Saves time and cost



Material Molded plastic Outside Dimension 15.7"X 6.9" x4.2"

Splice Chamber

Space

12" X 4.7" x 3.3 Weight(without kit) 1.7 kg
CableDiameter 0.4- 1 inch Cable Port 4( 2 each side )

Quantity of Cables

Installed

2-4 Max. Fibre Capacity 48 single fibres
Looping Length of Bare Fibres >2 x0.8 m

Looping Length of

Fibre withLoose-Tube

>2 x0.8 m



Application:

This fiber optic closure is suitable for the applications up to 48 single fibres, which can cover most ofthe applications in the  fibre distribution networks like Fibre To The Home/Fibre ToThe Curb (FTTH/FTTC) Underground, aerial, pedestal or direct buried applications are possible with the closure. 21 79-CS  haschemical and mechanical resistance for all the application areas in the fibre networks. Can beused in Butt or In-Line configuration.





11
