Overview

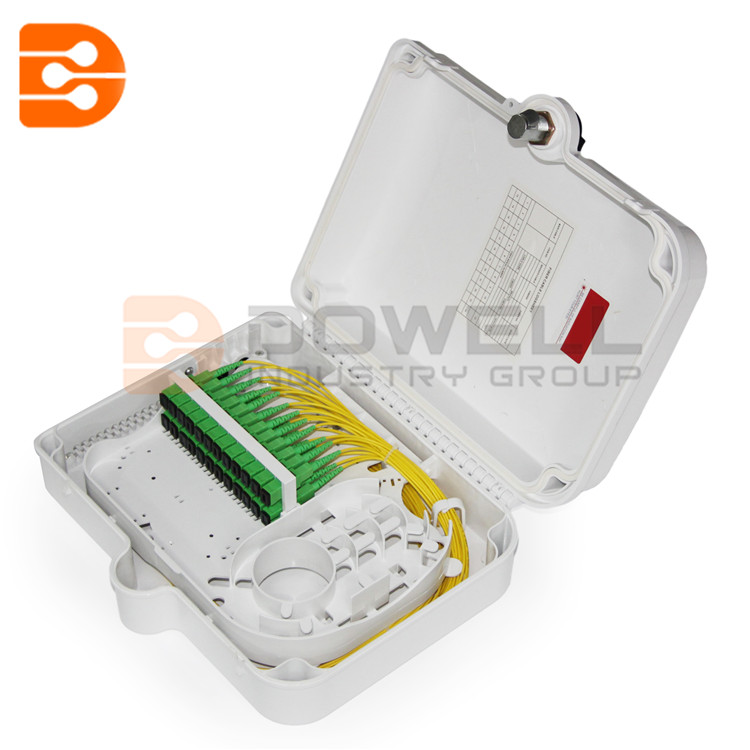

Distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features
1.Total enclosed structure.
2.Material: PC+ABS
3.Wet-proof, water-proof, dust-proof, anti-aging
4.Protection level up to IP65.
5.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one.
6.Cable, pigtails, patch cords are running through own path without disturbing
each other, cassette type SC adapter installation, easy maintenance.
7.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
8.Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
9.The grounding device is isolated with the cabinet, isolation resistance is no less than 1000MΩ/500V(DC);IR≥1000MΩ/500V.
10.The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V.
| Dimensions and Capability | |
| Dimensions (H*W*D) | 317mm*237mm*101mm |
| Weight | 1 KG |
| Adapter Capacity | 24 pcs |
| Number of Cable Entrance/Exit | Max Diameter 13mm, up to 3 cables |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Micro Splitters |
| Insertion loss | ≤0.2dB |
| UPC return loss | ≥50dB |
| APC return los | ≥60dB |
| Life of insertion and extraction | >1000 times |
| Operation Conditions | |
| Temperature | -40℃ -- +85℃ |
| Humidity | 93% at 40℃ |
| Air Pressure | 62kPa – 101kPa |
| Shipping Information | |
| Package Contents | Distribution box, 1 unit; Keys for lock, 1keys Wall mount installation accessories, 1 set |
| Package Dimensions(W*H*D) | 380mm*300mm*160mm |
| Material | Carton Box |
| Weight | 1.5 KG |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
