● Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.
● With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.
● Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.

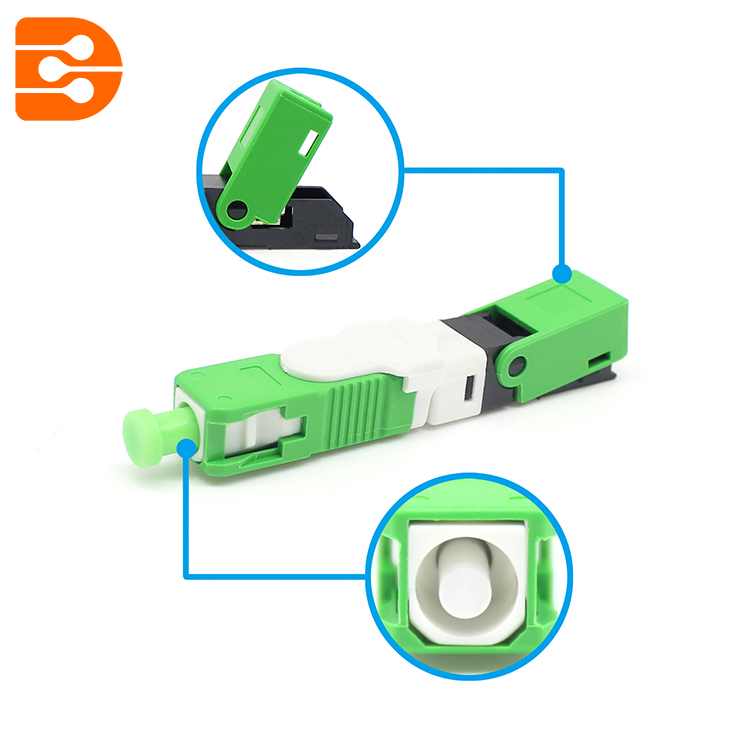

DW-250D-A
Item | Parameter |
Cable Scope | 3.1 x 2.0 mm Bow-type Drop Cable |
Size | 51*9*7.55mm |
Fiber Diameter | 125μm (652 & 657) |
Coating Diameter | 250μm |
Mode | SM SC/APC |
Operation Time | About 15s (exclude fiber presetting) |
Insertion Loss | ≤ 0.3dB（1310nm & 1550nm) |
Return Loss | ≤ -55dB |
Success Rate | >98% |
Reusable Times | >10 times |
Tighten Strength of Naked Fiber | >5 N |
Tensile Strength | >50 N |
Temperature | -40 ~ +85 C |
On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
Mechanical Durability（500 times) | IL ≤ 0.3dB |
Drop Test (4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
FTTx, Data Room Transformation
