DW-FLX
Availability: | |
---|---|

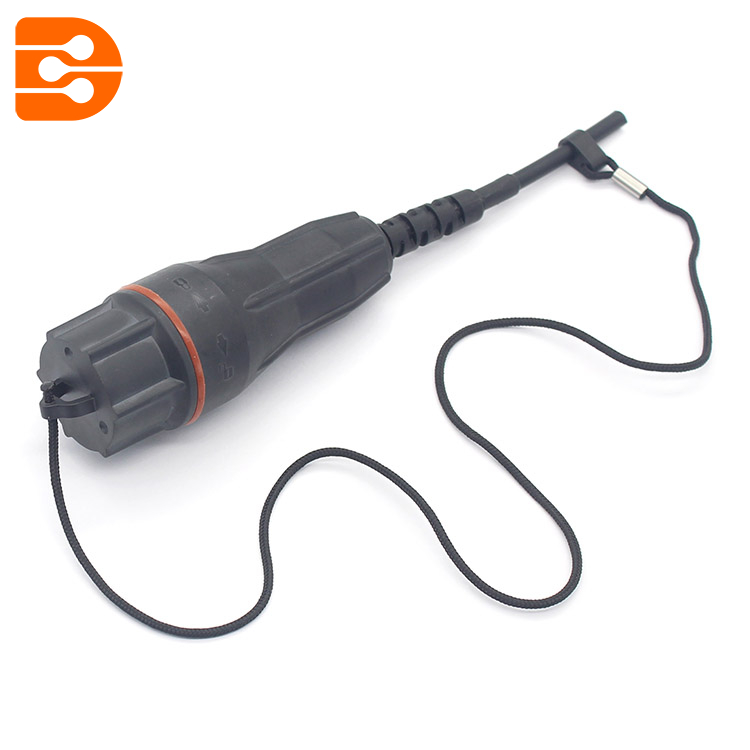

To meet the needs of the next generation WiMax and long term evolution (LTE) fiber to the antenna (FTTA) connection design for outdoor use harsh requirements, has released the FLX connector system, which provides the remote radio between the SFP connection and the base station, used for Telecom applications. This new product to adapt the SFP transceiver provides the most widely in the market, so that end users can choose to meet the specific requirements of the transceiver system.
Parameter | Standard | Parameter | Standard |
150 N Pull Force | IEC61300-2-4 | Temperature | 40°C – +85°C |
Vibration | GR3115 (3.26.3) | Cycles | 50 Mating Cycles |
Salt Mist | IEC 61300-2-26 | Protection Class/Rating | IP67 |
Vibration | IEC 61300-2-1 | Mechanical Retention | 150 N cable retention |
Shock | IEC 61300-2-9 | Interface | LC interface |
Impact | IEC 61300-2-12 | Adapter Footprint | 36 mm x 36 mm |
Temperature / Humidity | IEC 61300-2-22 | Duplex LC Interconnect | MM or SM |
Locking Style | Bayonet style | Tools | No tools required |
Use the cable assembly firmly establish themselves through the bulk heads directly inserted into the optical fiber transceiver is directly connected to the WiMax and LTE in FTTA application. Connectors of the connection request, can accommodate a larger tolerance in Z direction. In the FLX connector system by allowing large Z direction of tolerance, but also provides a single hand installed in compliance with this requirement in the connector housing benefits.
With this new line of products, users can also be easily removed, and through the open the entire remote radio box in do not need completely, its contents exposed in poor weather conditions bulkhead hole replace transponder.

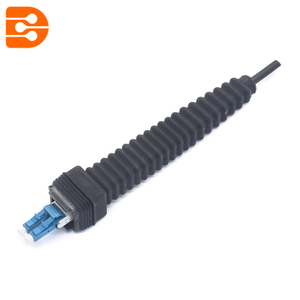

For optical fiber connection, duplex LC interface of the connector system includes an industry standard for quick, paired with all LC duplex SFP transceiver. The FLX connector can be designed for either the application single mode or multimode optical fiber transmission.
Aim to provide a general platform, new products to expand the capabilities of the RJ45 and the power supply connector, and version splicing in the field installation, to adapt to any cable. Other functions of the product / system benefits include:
- is a mechanical feedback to inform the operator when the connector completely docking
During or after installation, no cable buckling
- powerful bayonet locking, convenient, fast, secure mating
- a waterproof, dustproof, corrosion resistant design, using metal die-casting bulkhead
- cost savings by eliminating the fiber in the management of the radio unit
The antenna feeder is connected to the specifications of the optical fiber.
During or after installation, no cable buckling
- powerful bayonet locking, convenient, fast, secure mating
- a waterproof, dustproof, corrosion resistant design, using metal die-casting bulkhead
- cost savings by eliminating the fiber in the management of the radio unit
The antenna feeder is connected to the specifications of the optical fiber.
