ODVA-compliant connectors specifically for harsh environment applications, such as WiMax, Long Term Evolution (LTE), and Remote Radio Heads using Fiber To The Antenna (FTTA) connectivity, which require rugged connector and cable assemblies suitable for outdoor use. Designated the LC Series, CONEC offers the broadest ODVA-compliant fiber-optic connector portfolio in the industry, providing both full-metal and plastic versions of the IP67-rated interconnects. CONEC’s extensive ODVA-compliant product portfolio gives customers design flexibility, and ensures that FTTA systems meet telecommunication industry standards as well as harsh environment requirements. In addition, CONEC can provide cable and plug kit assembly services to deliver a complete FTTA systems interconnect solution.
DW-ODVAL

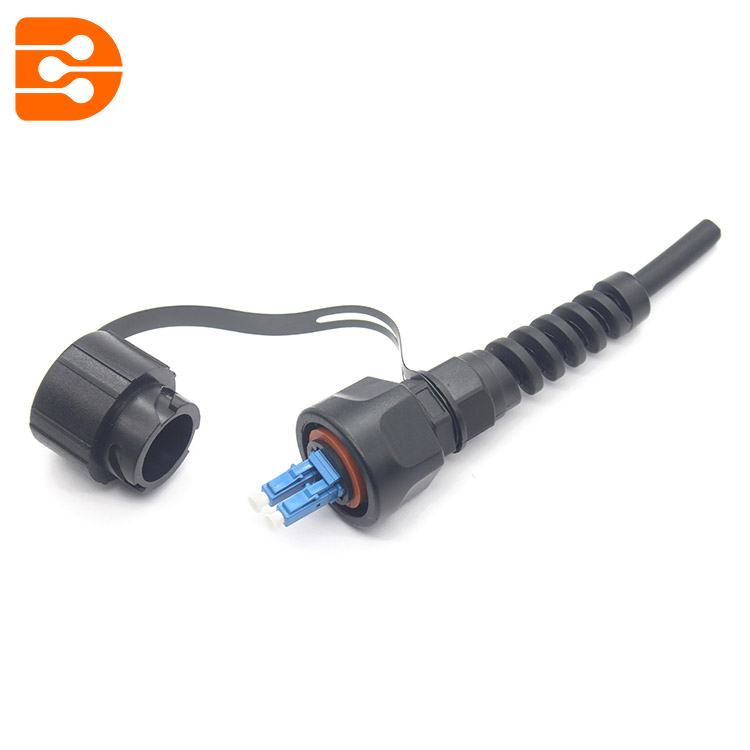

The water-resistant LC Series connectors provide increased protection from contamination and moisture in addition to mechanical stability, temperature resistance and vibration immunity. The connectors use OFNR (optical fiber nonconductive riser) breakout cables rated for outdoor usage. The IP67-rated LC Series connector’s features a 1/6th turn bayonet coupling for a fast and secure mate/unmated, even with gloved hands. The compact LC Series connectors are also compatible with industry standard cables and interconnect products.
Connectivity solutions for single-mode, multi-mode and APC requirements are optional.
Pre-terminated jumper cables, including cables suitable for outdoor and indoor use in standard lengths from 1 meter to 100 meters, are also included. Custom lengths are also available.
Parameter | Standard | Parameter | Standard |
150 N Pull Force | IEC61300-2-4 | Temperature | 40°C – +85°C |
Vibration | GR3115 (3.26.3) | Cycles | 50 Mating Cycles |
Salt Mist | IEC 61300-2-26 | Protection Class/Rating | IP67 |
Vibration | IEC 61300-2-1 | Mechanical Retention | 150 N cable retention |
Shock | IEC 61300-2-9 | Interface | LC interface |
Impact | IEC 61300-2-12 | Adapter Footprint | 36 mm x 36 mm |
Temperature / Humidity | IEC 61300-2-22 | Duplex LC Interconnect | MM or SM |
Locking Style | Bayonet style | Tools | No tools required |
Cable Parameter
Items | Specifications | |
Fiber Type | SM | |
Fiber Count | 2 | |
Tight-buffered Fiber | Dimension | 850+50um |
Material | PVC or LSZH | |
Color | Blue/Orange | |
Jacket | Dimension | 7.0+/-0.2mm |
Material | LSZH | |
Color | Black | |
Mechanical and Environmental Characteristics
Items | Unite | Specifications |
Tension (Long Term) | N | 150 |
Tension (Short Term) | N | 300 |
Crush（Long Term） | N/10cm | 100 |
Crush（Short Term） | N/10cm | 500 |
Min. Bend Radius（Dynamic） | MM | 20 |
Min. Bend Radius（Static） | MM | 10 |
Operating Temperature | ℃ | -20～+60 |
Storage Temperature | ℃ | -20～+60 |
