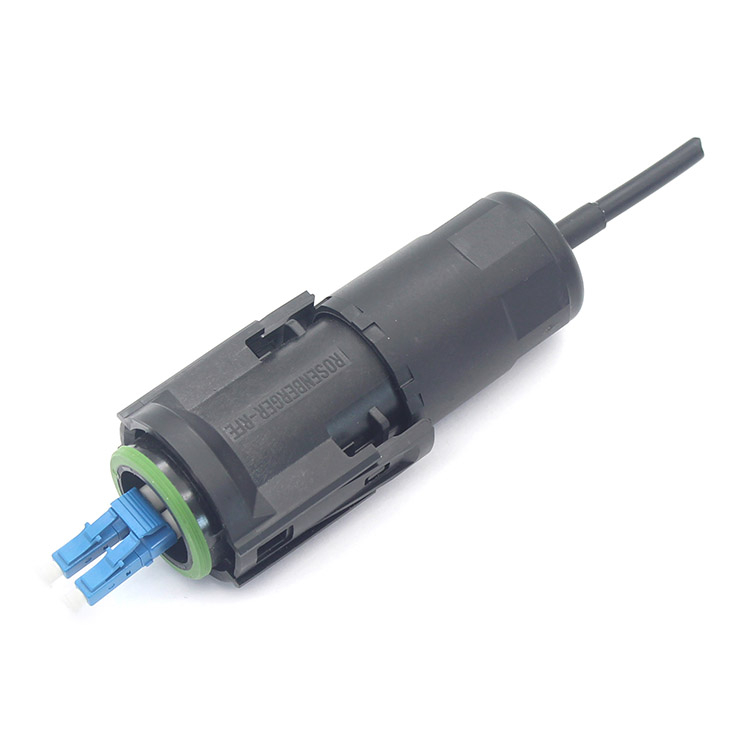

Duplex LC UPC RFE Waterproof Reinforced Connector, Pigtail and Patch Cord

● Open bulkhead for easy access to SFP
● Positive feedback to operator when fully mated
● One-hand mating
● Duplex LC interface
● Bulkhead cutouts allow for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
● Robust bayonet locking for easy, fast, and secure mating
● Multimode and singlemode
● Water proof, dust proof and corrosion resistant
● Expansion to RJ45, etc
● Plug has tolerance free design, fully free floating in Z-axis
● No Cable buckling at any time during or after installation
● Cost effective glass-filled polymer or metal die casted bulkhead
● Field installable version available
  • DW-RFE

02




To meet the needs of the next generation WiMax and long term evolution (LTE) fiber to the antenna (FTTA) connection design for outdoor use harsh requirements, has released the RFE connector system, which provides the remote radio between the SFP connection and the base station, used for Telecom applications. This new product to adapt the SFP transceiver provides the most widely in the market, so that end users can choose to meet the specific requirements of the transceiver system.


Parameter

Standard

Parameter

Standard

150 N Pull Force

IEC61300-2-4

Temperature

40°C – +85°C

Vibration

GR3115 (3.26.3)

Cycles

50 Mating Cycles

Salt Mist

IEC 61300-2-26

Protection Class/Rating

IP67

Vibration

IEC 61300-2-1

Mechanical Retention

150 N cable retention

Shock

IEC 61300-2-9

Interface

LC interface

Impact

IEC 61300-2-12

Adapter Footprint

36 mm x 36 mm

Temperature / Humidity

IEC 61300-2-22

Duplex LC Interconnect

MM or SM

Locking Style

Bayonet style

Tools

No tools required


Use the cable assembly firmly establish themselves through the bulk heads directly inserted into the optical fiber transceiver is directly connected to the WiMax and LTE in FTTA application. Connectors of the connection request, can accommodate a larger tolerance in Z direction. In the RFE connector system by allowing large Z direction of tolerance, but also provides a single hand installed in compliance with this requirement in the connector housing benefits.



With this new line of products, users can also be easily removed, and through the open the entire remote radio box in do not need completely, its contents exposed in poor weather conditions bulkhead hole replace transponder.



For optical fiber connection, duplex LC interface of the connector system includes an industry standard for quick, paired with all LC duplex SFP transceiver. The RFE connector can be designed for either the application single mode or multimode optical fiber transmission.



Aim to provide a general platform, new products to expand the capabilities of the RJ45 and the power supply connector, and version splicing in the field installation, to adapt to any cable. Other functions of the product / system benefits include:



- is a mechanical feedback to inform the operator when the connector completely docking

During or after installation, no cable buckling

- powerful bayonet locking, convenient, fast, secure mating

- a waterproof, dustproof, corrosion resistant design, using metal die-casting bulkhead

- cost savings by eliminating the fiber in the management of the radio unit

The antenna feeder is connected to the specifications of the optical fiber.

During or after installation, no cable buckling

- powerful bayonet locking, convenient, fast, secure mating

- a waterproof, dustproof, corrosion resistant design, using metal die-casting bulkhead

- cost savings by eliminating the fiber in the management of the radio unit

The antenna feeder is connected to the specifications of the optical fiber.
