| Environment for use: | Indoors or in dry enclosure rated IP54 or greater |
| Operating temperature range: | -40ºC to +80ºC |
| Maximum relative humidity: | 93% non-condensing |
| Transmission, performance and reliability: | ZANSI/EIA/TIA 568A Cat. 5 |
| ZISO/IEC 11801 Cat. 5 | |
| Number of patching cycles: | Z750 |
| Number of wire reterminations: | >200 |
| Wire diameter range for solid and stranded | |
| copper conductors: | 0.40 - 0.65 mm* (26-22 AWG) |
| Wire insulation | |
| diameter range (PE, PVC): | 0.70 - 1.40 mm |
| Voltage rating: | 150 VAC |
| Insulation resistance: | Z>500,000 MΩ at 500 VDC |
| Safety: | UL 1863 |
| Flammability rating of plastic housing: | UL 94 VO |

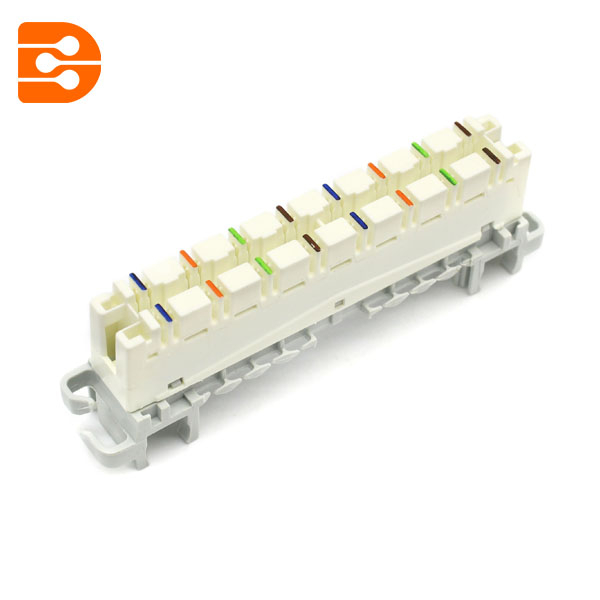

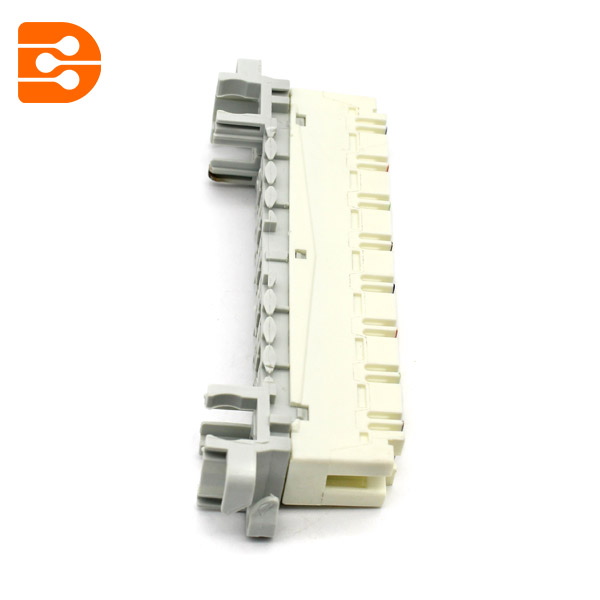

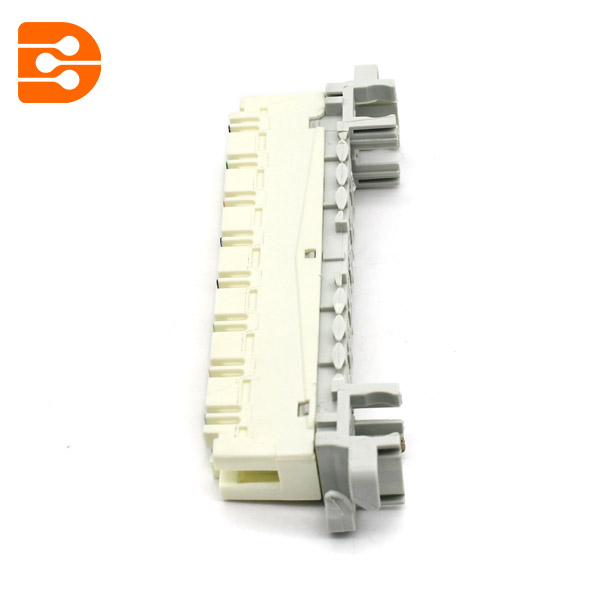

Superior high speed data and voice cross connect modules. Available in 8 and 10 pair disconnect versions. These modules enable high speed LAN and WAN systems maximum headroom in transmission performance.
HIGHBAND utilises the silver plated LSA Plus contact principle. This is proven technology which has become the ‘industry standard’ in over 60 countries. The gas tight contacts ensure a reliable and long lasting connection.
These modules can be either patched, jumpered and used in a patch by exception configuration.
